These receptors are suitable for all professional applications both in audio and video, allowing professionals to handle signals in a very consistent way, repeatable and predictable, using SDI with a low-cost effective integration with monitors and high-definition displays and computer.

Communications Specialties (CSI) has announced the latest addition to its transmission equipment Fiberlink series fiber optic SMPTE standard for 3 G/HD/SD-SDI. This family of receptors by fiber optic 355 x, convert 3 G/HD/SD-SDI to audio embedded HDMI signal with stereo audio, DVI with stereo audio, VGA with stereo audio or video components with stereo audio.

This new family of receptors Fiberlink, distribudidos in Spain by Tecco, are suitable for all professional applications both in audio and video, allowing professionals to handle signals in a very consistent way, repeatable and predictable, using SDI with a low-cost effective integration with monitors and high-definition displays and computer. In a digital signage application, you can for example, routed and switched an SDI signal to multiple displays with HDMI, DVI, VGA and video component input, and select different language or pair of audio for each display.

Fiberlink 3353

Fiberlink 3353 allows you to convert standard 3 G/HD/SD-SDI SMPTE, transmitted over fiber from a transmitter Fiberlink 3350, 3360 / 3380 into HDMI signals. If there is present in the SDI audio, the operator can choose one of up to 4 pairs of stereo audio embedded in the HDMI signal base-band, as well as to leave the RCA audio connectors. Alternatively, the operator can choose any existing audio mute.

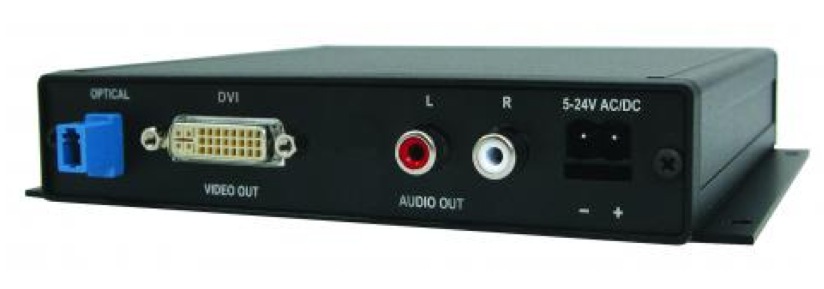

Fiberlink 3355

Fiberlink 3355 allows you to convert standard 3 G/HD/SD-SDI SMPTE, transmitted over fiber from a transmitter Fiberlink 3350, 3360 / 3380 in DVI signals. If there is present in the SDI audio, the operator can choose one of up to 4 pairs of stereo audio to RCA audio connectors come out. Alternatively, the operator can choose any existing audio mute.

Fiberlink 3357

Fiberlink 3357 allows you to convert signals SMPTE standard of 3 G/HD/SD-SDI, transmitted over fiber from a transmitter Fiberlink 3350, 3360 3380 or in VGA or component. If there is present in the SDI audio, the operator can choose one of up to 4 pairs of stereo audio to RCA audio connectors come out. Alternatively, the operator can choose any existing audio mute.
Optional features include a loop-through SDI, equalized and re-if, and the choice of ST fiber for applications Pro a/v connector or connector LC SMPTE compliant.

The Fiberlink 3350, 3360 and 3380 series, meet the standard SMPTE 297-2006 and have the ability to operate properly with Fiberlink Matrix arrays and other equipment which comply with SMPTE 297-2006 standard for fiber optic equipment. they are also immune to pathological signals throughout the range of operating temperature and, being compatible with singlemode and multimode fibers.

Available in a box of small form factor, are ideal for digital signage-digital signage, corporate environments, rental and events, stadiums, theatres, airports or stations of intermodal transport, distance learning, transmission of images in surgery and medicine, broadcast and TV studios, ob,...
