The new line-up includes the LUM-310R, a 31” 4K HDR Reference Master monitor ; the LEM-550R, a 55” UHD OLED HDR monitor for broadcast QC and post production; the VFM-055A, a 5.5” HD OLED viewfinder/onboard mintor; and the LVM-171S,a 17” QC-Grade HD Dual-Channel LCD monitor.

TVLogic is introducing at NAB 2017 several new 4K HDR and OLED monitors at the NAB 2017 that address the ever-increasing demands of broadcast, production, post-production, and multi-viewer applications.

The new line-up includes the LUM-310R, a 31” 4K HDR Reference Master monitor featuring 2000 nit maximum luminance; the LEM-550R, a 55” UHD OLED HDR monitor for broadcast QC and post production; the VFM-055A – a 5.5” HD OLED viewfinder/onboard monitor offering stunning cinematic quality; and the LVM-171S,a 17” QC-Grade HD Dual-Channel LCD monitor with unmatched wide viewing.

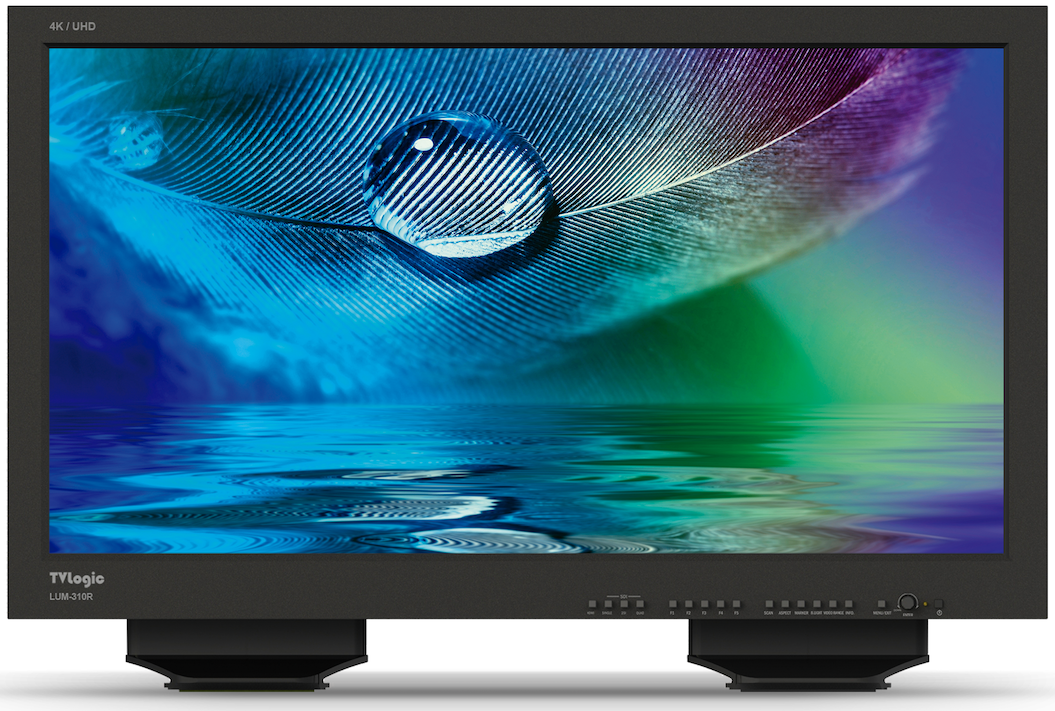

The LUM-310R is a 4K HDR Reference Master production monitor with a 31-inch wide Super-IPS 4K LCD (4096 x 2160) and a local-dimming backlight array designed to reproduce reference HDR content at a maximum luminance of 2,000 nits with a simultaneous deep black minimum of 0.002 nits.

The LUM-310R supports various HDR standards such as SMPTE ST2084, ST2086 and ST2094 (pending), Hybrid-Log Gamma (HLG), and more. It also supports multiple color gamuts including Rec.709, DCI-P3, and Rec.2020. Signal I/O includes 3G/6G/12G-SDI input via one, two, or four SDI connections as well as HDMI (ver. 2.0).

TvLogic LEM-550R

QC-Grade HDR monitor

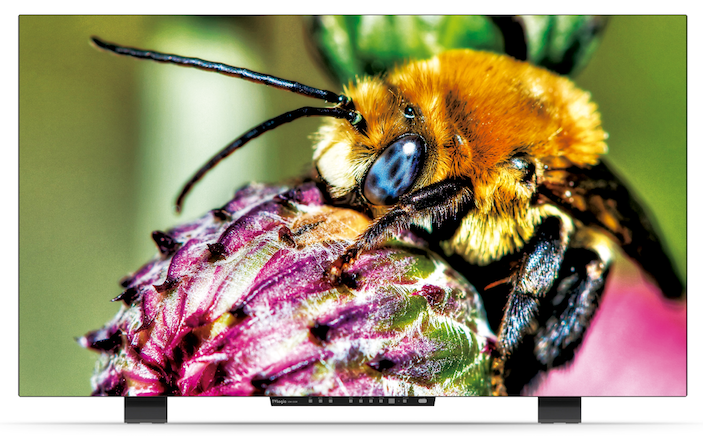

The LEM-550R is a QC-Grade HDR monitor for broadcast and post production with a 55-inch OLED panel with UHD resolution of 3840 x 2160. The OLED panel can reproduce a maximum luminance of up to 750 nits. the LEM-550R supports various HDR standards such as SMPTE ST2084, ST2086 and ST2094 (pending), Hybrid-Log Gamma (HLG), and others. It also supports multiple color gamuts including Rec.709, DCI, and Rec.2020. Signal I/O includes 3G/6G/12G-SDI input via one,two, or four SDI connections as well as HDMI (ver.2.0).

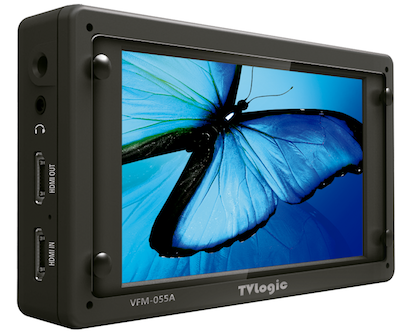

TvLogic LEM-550RThe VFM-055A is a 5.5-inch OLED (organic LED) on-camera viewfinder monitor with native 1920×1080 resolution. It offers truly cinematic image quality with deep blacks, wide-gamut color reproduction, a very wide viewing angle, and support for multiple video formats via 3G-SDI and HDMI 1.4 inputs. Useful functions include cinema camera log-to-linear LUT conversion, HDMI-SDI cross-converted output, waveform and vector scope, markers, focus assist, audio level meters and more.

The new LVM-171S is TVLogic’s top QC-Grade 17-inch model with a 16.5 inch IPS LCD panel with 1920×1080 native resolution, wide-gamut reproduction (up to DCI-P3) enhanced contrast ratio and wide viewing angle all unmatched by other LCD monitors. A completely redesigned video processing unit provides powerful dual-channel performance and artifact-free image reproduction. Support for various cinema camera log-to-linear LUTs, easy field upgradability and a full array of image processing features are standard.
