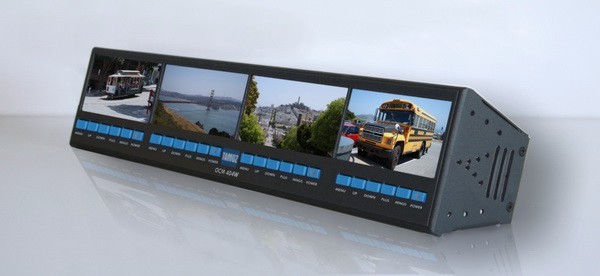

Tamuz OCM 404W HD: rack with four OLED monitors

With a contrast ratio of 2,000:1, these new reference monitors from German manufacturer Tamuz take full advantage of OLED technology, offering a resolution of 480x272 RGB at 8 bits per pixel and 16.7 million colors in a compact 2RU unit with three SD/HD-SDI inputs and one CCVS.

Designed for broadcast environments, both in studio and EFP, the new OCM 404 W HD from Tamuz offers four 4.3" grade 1 OLED monitors in a compact unit. This new range from the German manufacturer offers a native 4:3 and 16:9 display at a resolution of 480x272 RGB at 8 bit per pixel and 16.7 million colors. They meet the T3320 recommendation of the UER/EBU and Full EBU Color Space. With a contrast ratio of 2,000:1, these reference monitors are equipped with an Eagle interface that allows operation below ten bits, with MultiSync and Multiformat capability, accepting both SD and HD signals and from graphic sources.

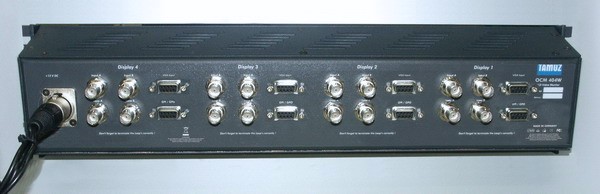

Note, on the other hand, that they accept all possible vertical frame rates (24, 25, 30, 50 and 60 Hz) at their native speed and are equipped with three SD/HD-SDI inputs and one CCVS input. Its graphics inputs accept RGBHV, RGsB and RGBS. Finally, note that they have tally lights as well as IMD or multicolor LEDs on the front. They occupy two RUs and are designed to be mounted in a 19” rack, operating at 12 V DC.

Being an Organic Light Emitting Diode (OLED) technology, using organic materials that emit colored light when stimulated by a low-level voltage, its extremely small pixels are built as a set of red, green and blue light-emitting diodes that offer high brightness and highly appreciated color naturalness.
