1T-CT-690: Tv One will present its HDMI wireless transmission systems at ISE'10

The new 1T-CT-690 system that Tv One will present in Amsterdam allows the transmission of HDMI signals to be established at distances of up to twenty meters, both in point-to-point or in broadcast mode, carrying the signals from one transmitter to several receivers.

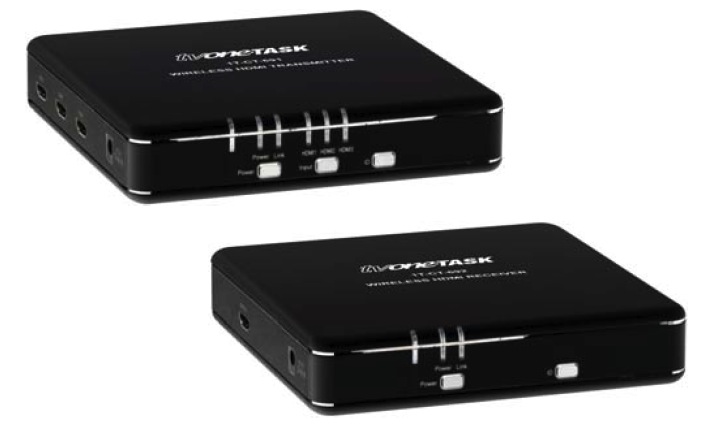

On the occasion of the ISE'10 Amsterdam celebration, Tv One will present the 1T-CT-690 HDMI wireless transmission system. This solution, composed of the transmitter (1T-CT-691) and the receiver (1T-CT-692), allows the transmission of 1080p HDMI signals in addition to embedded or lossless audio and supports VGA and SVGA at 60/72Hz and XGA at 60/70Hz as well as HDTV resolutions (even 1080p without compression).

In terms of color space, it supports RGB 24 Bit 444, reaching signal sending coverage of up to 20 meters with a cadence of less than 1 ms and a data rate of 1.5Gps.

The system can work in two modes: unicast and broadcast. The first allows establishing a point to point while in the second, several receivers are powered from a single transmitter. Complying with HDCP requirements, the system uses a 256-bit AEC encryption algorithm. EDUD and CEC options are available in unicast mode, and it also works with a standard infrared remote control. Includes an infrared Blaster capable of controlling all devices connected to the 1T-CT-691 transmitter from any of the receivers.

Finally, note that both the transmitter and receiver come equipped with a connector blocker, preventing the accidental disconnection of any of the connected devices.

Features

• HDTV resolutions up to 1080p, 24fps/30fps
• 1080p distribution at 20 meters 24-bit RGB 4:4:4
• VGA and SVGA (60/72), XGA (60/70) RGB input
• Compatible con HDMI v1.2 Lossless Audio Digital
• Cumple con HDMI v1.2, HDCP 1.1
• Supports HDTV I/O up to 1080p
• Encrypted 256-bit video
• IR Blaster for remote control of other devices
• +5 VDC connector lock
