Blackmagic improves its interesting SD card duplication system

Duplicator version 1.0.2 makes it easy to duplicate, distribute and sell UHD footage directly to consumers during shows. This update improves performance and compatibility with devices that play content in H.265 format.

Blackmagic Design has just released version 1.0.2 of its popular SD card duplication system, Duplicator. The new version can be downloaded for free from the Australian manufacturer's website.

Permite mejorar el procesamiento de archivos H.265 en los dispositivos de reproducción más recientes. Desde el lanzamiento del nuevo Blackmagic Duplicator 4K el pasado mes de abril, han surgido nuevos productos que brindan la posibilidad de reproducir este tipo de contenidos. Los comentarios de los usuarios con respecto al procesamiento de estos archivos han sido de gran utilidad para mejorar el códec en el equipo fabricado por Blackmagic.

The response from consumers since the launch of this product has been very positive, as it finally offers an easy way to generate income during different events. This new update has collected user feedback and provides various improvements related to H.265 format encoding that make it easier to obtain extraordinary images without requiring high transmission speeds. On the other hand, mp4 files are compatible with a wider variety of playback devices. This gives users the ability to use slower PCs and different models of 4K TVs to play UHD content at a high frame rate.

Likewise, the new update allows you to optimize audiovisual synchronization, especially when making extensive recordings or adding several clips to the same file using the “Append” function. Furthermore, the delay when detecting a new signal has been reduced, in order to start copying content quickly. Communication between units has also been improved when connected in series to record more than 25 cards simultaneously.

Version 1.0.2 also makes it easier to duplicate, distribute and sell UHD footage directly to consumers during shows.

Grant Petty, CEO of the company, has assured that "the new Blackmagic Duplicator 4K has been very well received by users, who have sent their comments directly to Blackmagic Design engineers. This update is exceptional, as it allows the creation of mp4 files compatible with a greater variety of televisions, computers and other playback devices. In addition, this product gives videographers the possibility of generating content that can be marketed immediately at the end of an event, whether it be school events, weddings, concerts, conferences or any other type of show. Now there is a way to duplicate recordings in HD or UHD instantly to sell them to parents, fans and viewers at the end of the function. This device offers a highly beneficial solution, both for consumers and for those in charge of creating content.

Duplicado de 25 tarjetas simultáneas

Este dispositivo innovador permite grabar contenidos UHD en tarjetas de memoria económicas para distribuirlos al finalizar un evento. Con una capacidad para 25 unidades de almacenamiento, incluye además un codificador H.265 y conexiones SDI 12G que admiten varias velocidades de transferencia. De este modo, ofrece la mejor solución para proporcionar a los consumidores material audiovisual que pueden ver en televisores 4K o equipos informáticos con sistema operativo Windows 10.

The new Blackmagic Duplicator 4K gives content creators a way to significantly increase their income by allowing copies to be sold immediately after an event, taking advantage of the enthusiasm of attendees. The team facilitates the sale of content to fans of a band at the end of a concert, parents of children participating in artistic presentations, guests at a wedding or attendees at seminars, conferences and sporting events.

El dispositivo codifica los videos según la norma H.265 utilizada en la distribución de contenidos UHD y guarda archivos de formato abierto en tarjetas SD. El codificador integrado permite obtener imágenes con una calidad extraordinaria en tiempo real, incluso a una resolución de 2160p60. La calidad que ofrece el sistema H.265 es superior a la de su predecesor. Asimismo, los archivos son más pequeños y la velocidad de transferencia de datos es menor, de modo que los contenidos pueden reproducirse directamente desde la unidad de almacenamiento. El peso de un archivo en este formato no es mucho mayor al de uno codificado según el estándar H.264.

With a compact size of just 1U, the new Blackmagic Duplicator 4K records content to fast and small common SD cards that are easily available at a reasonable price. These drives allow you to store images in different definitions and are compatible with Mac and Windows computers. On the other hand, they can be used directly on most UHD televisions, using a USB adapter.

One hour of UHD on an 8GB SD card

The efficiency of the encoder makes it possible to store one hour of UHD content on an 8 GB SD card. Another advantage is that these cards are easily labeled, and the leftover units can be reused to record on them again. On the other hand, unlike what happens with other proprietary formats such as Blu-Ray, it is not necessary to purchase slow and expensive players. The new Blackmagic Duplicator 4K provides an easy and extremely cost-effective way to distribute UHD materials.

The front panel controls have been designed to facilitate duplication of content and include 6 illuminated buttons to start and stop recording, lock the equipment, add sequences to the same file, access the different menus and control other units remotely. The lock function prevents unexpected interruptions during image registration, while the “Append” button provides the ability to combine multiple parts of the event into a single file.

This feature is ideal for events where there are natural pauses, such as weddings where the religious ceremony and reception are held in different locations. This way, users only need to play a single file to see the entire recording.

Por su parte, el panel trasero dispone de una conexión SDI 12G compatible con diferentes velocidades de transmisión que permite la grabación de imágenes en cualquier formato SD, HD o UHD (2160p60). Para eventos de mayor envergadura, pueden utilizarse varias unidades en forma conjunta gracias a la salida derivada y controlarlas a través del protocolo RS-422. Esto brinda la posibilidad de codificar y duplicar contenidos en una cantidad ilimitada de tarjetas SD. Al iniciar o detener la grabación en la unidad principal, sucede lo mismo en los demás dispositivos conectados. Asimismo, el equipo dispone de un compartimiento que permite instalar un módulo para fibra óptica opcional, facilitando de esta manera el uso de cables de mayor longitud en superficies de grandes dimensiones. Esto resulta de suma utilidad cuando el dispositivo se sitúa cerca de los puestos de venta, alejado del área de producción, a fin de comercializar las tarjetas con mayor rapidez.

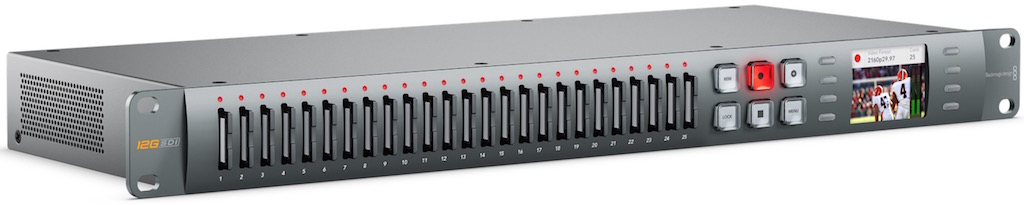

Blackmagic Duplicator 4K

• Recording to multiple cards simultaneously
• UHD content encoding in real time using the H.265 standard.
• 12G SDI input, derived output and control via RS-422 protocol.
• Open format files, compatible with computer equipment and UHD televisions.
• Supports different definitions with a maximum resolution of 2160p60.
• Function to store multiple recordings in the same file, in order to simplify playback.

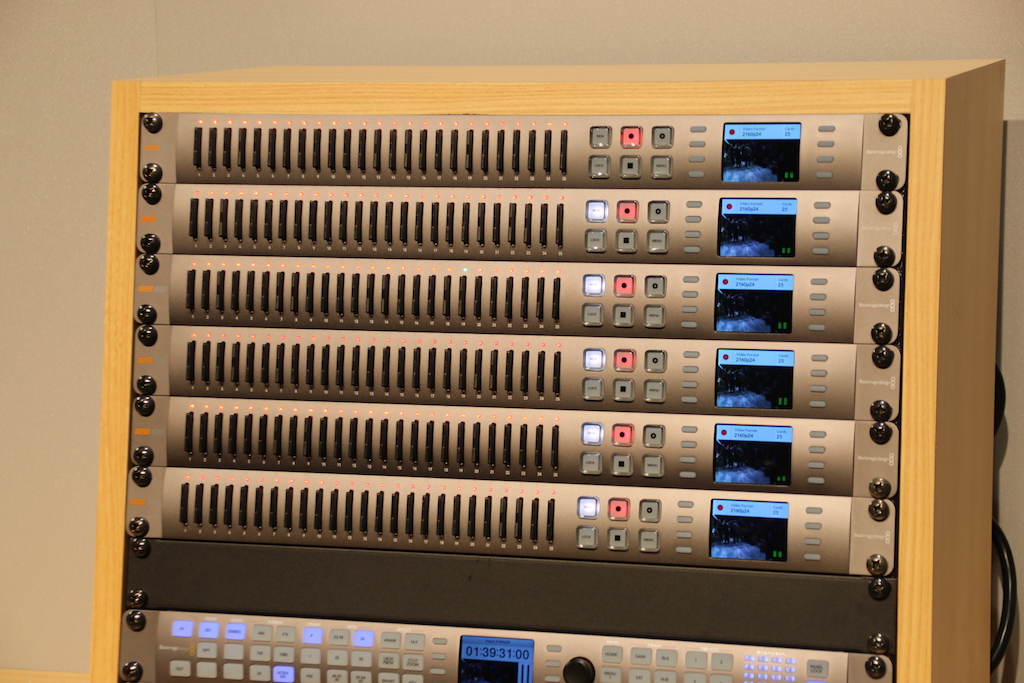

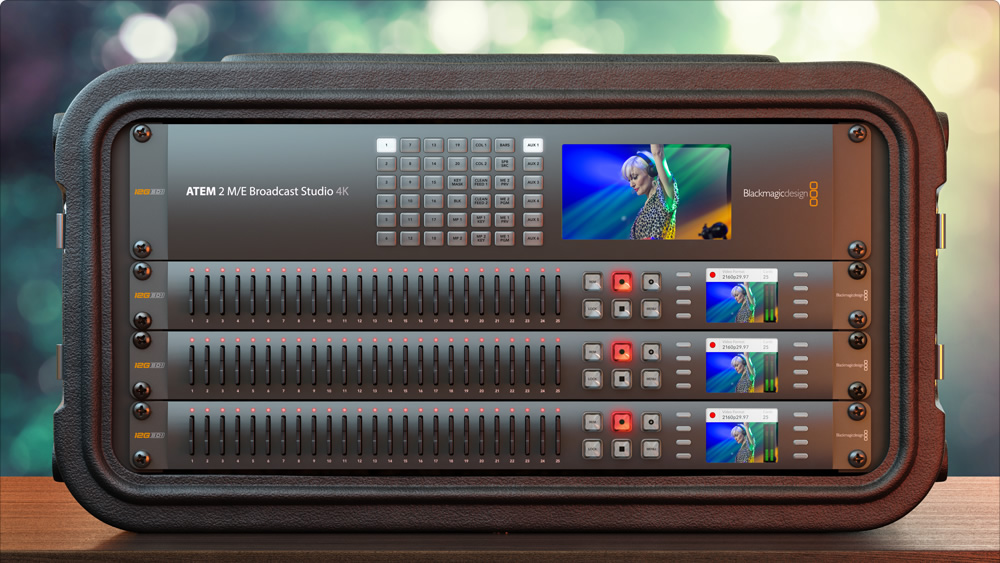

• Connecting multiple units in series to increase recording capacity.
• Controls on the front panel with buttons for different functions.
• Universal power supply for 110-240 V alternating current.
