DJI expands its offer of professional stabilization solutions for cinema at all levels at NAB

Two new solutions, DJI Master Wheels and Force Pro, allow you to control the stabilizers precisely and intuitively.

DJI has presented new cinematography tools at NAB 2018: DJI Master Wheels and DJI Force Pro. These are professional stabilizer control solutions for all types of filmmakers and situations. Made to offer precise control over stabilizer movements, these new products offer filmmakers reliable tools to capture complex shots with ease, enhancing the cinematic quality of any scene.

Master Wheels and Force Pro control the stabilizers of the Ronin 2 and Ronin-S and expand the creative possibilities for filmmakers of all levels.

As for Master Wheels, it is a professional, high-precision stabilizer control system that controls pan, tilt and rotation using three wheels. Its precise, stable and fluid movements give a professional look, while its functional and easy-to-use design makes it easy to record even the most complicated shots.

For its part, Force Pro uses DJI's remote control technology to precisely synchronize the movement of the Force Pro with the gimbal, making it easier to record cinematic scenes. Force Pro is intuitive and easy to learn to use. In this way it breaks the barriers that come with the operation of more complex stabilizer control systems.

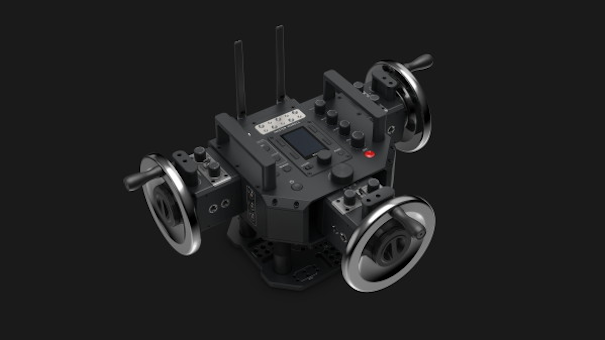

Master Wheels

The DJI Master Wheels are a high-precision gimbal control tool that uses three wheels to adjust pan, tilt and roll with extreme precision. High-resolution optical rotary encoders detect even the most subtle wheel movements, while sophisticated algorithms translate that movement to increase the stabilizer's precision. The Master Wheels use the latest technology in position sensors together with low-latency dual-band 2.4/5.8 GHz wireless transmission technology to ensure that the connection from the main console to the mobile structure is stable and reliable, with a latency that can drop to 10 milliseconds and an operating distance of more than 3 km.

Created with efficiency and ease of handling in mind, Master Wheels have an intuitive user interface that offers quick access to stabilizer settings as well as equipment status. Its three customizable buttons can store shortcuts, and its integrated motion capture allows filmmakers to easily repeat movements and thus focus their attention on other aspects of the scene, such as actresses and actors. Three integrated three-position switches open the possibility of adjusting the direction of each axle, while dials control speed, smoothness and damping. Additionally, the Master Wheels can be used to change important settings of the camera installed on the main console for quick response to any modifications the operator wants to make.

Their modular design makes Master Wheels practical and versatile, allowing you to record the desired sequence no matter the circumstances. The three stainless steel wheels and their control modules can be detached from the main console and connected to it via a cable for recording in situations where there is not much space. The wireless transmitter can also be detached and connected remotely via a five meter cable for cases where improved signal reception is needed.

Filmmakers can attach a variety of accessories, such as field monitors, using several 1/4” and 3/8” threads located on the main console. For greater operating comfort, the angle of the control module can be adjusted depending on user preferences. Master Wheels can be installed on a wide variety of platforms, including but not limited to vehicle interiors and tripods, thanks to their dedicated Mitchell mount at the base of the main console.

The versatility of the Master Wheels during filming is further expanded by its compatibility with the DJI ecosystem of products and with stabilizers from other manufacturers. Operators can control the movements of the stabilizers using professional products such as the Ronin 2 and Ronin-S, allowing them to take full advantage of the latest stabilizer technology. DJI's TB50 smart batteries, the same model used by the Ronin 2 and Inspire 2, power the system for up to 18 hours. Filmmakers who do not use DJI equipment will also be able to take advantage of the Master Wheels since they are compatible with several third-party stabilizers, in addition to being able to be powered by the DC-IN port through V-Lock batteries from other manufacturers.

Force Pro

Force Pro uses DJI's cutting-edge technology to precisely synchronize the operator's movement with that of the gimbal, allowing you to capture smooth videos even in complex or fast-paced scenes. An integrated compass and inertial measurement unit work in unison to ensure precise movement and prevent the gimbal from drifting, thus achieving consistent framing. Its low-latency, dual-band 2.4/5.8 GHz wireless transmission system offers almost real-time control with a transmission latency that drops to 10 milliseconds. The Force Pro can be connected to the gimbal physically using a CANBUS cable with a 200Hz signal, eliminating any chance of interference while filming.

Designed to be simple to use, Force Pro is an intuitive tool that filmmakers can quickly get used to, even with little experience using gimbal control systems. Those who find it too complicated to work with more complex products such as Master Wheels or even control sticks will be able to understand the Force Pro quickly. This eliminates barriers usually present with the use of advanced filming equipment. An optional lightweight grip increases the efficiency of the Force Pro, making it a complete portable handling solution with the ability to attach accessories such as monitors, video streaming systems and thumb controllers to the grip. Operators can set two custom speed profiles, and an ultra-bright OLED display shows rig status as well as allowing you to quickly change gimbal and camera control settings to adapt to scene changes.

Force Pro is compatible with the DJI Ronin 2 and Ronin-S stabilizers, as well as other third-party stabilizers. Operators can rely on Force Pro for long movie shooting sessions, with battery life of up to 5 hours on a full charge; It can also be recharged in various ways, such as through USB-C, the CANBUS port, or the DC-IN port compatible with V-Lock batteries from other manufacturers.
