This mini-converter that extracts a JPEG 2000 essence from an incoming IP stream and presents it for display on SDI devices.

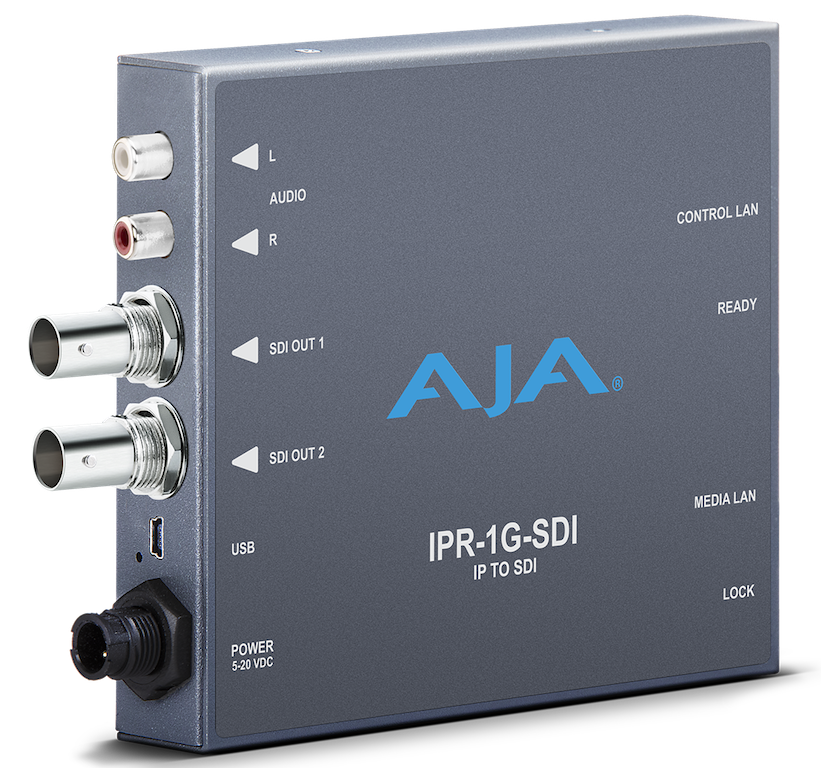

AJA announced that its new IPR-1G-SDI Mini-Converter is now available. IPR-1G-SDI extracts a JPEG 2000 essence from an incoming IP stream and presents it for display on SDI devices.

A rugged, fanless VSF TR-01 (and other JPEG 2000 over MPEG2-TS formats) to 3G-SDI Mini-Converter, IPR-1G-SDI is suited for point of use applications including monitoring, digital signage, video walls and beyond. IPR-1G-SDI decodes VSF TR-01 streams then formats the data for 3G-SDI output. Audio associated with the video stream is extracted, synchronized and embedded into the SDI stream as well as output on an analog RCA stereo interface.

IPR-1G-SDI

  • 1x RJ-45 (IEC 60603-7) for 10/100/1000Base-T Ethernet media input
  • Essence support: VSF TR-01 and other JPEG 2000 MPEG2-TS workflows
  • Rugged, fanless, and compact design
  • 2x 3G-SDI BNC outputs with 4:2:2 10-bits/pixel
  • Embedded and analog audio outputs
  • Full 10-bit pixel processing pipeline
  • Network (LAN) control and status
  • Quick network setup with AJA eMini-Setup software
