I-Movix Sprintcam V3, the slowest camera in the world

I-MOVIX allows Sprintcam V3 to see the world at 1,000 FPS in the super slow camera becoming a show to the most insignificant detail.

Seeing the world at 1,000 fps is what allows the Sprintcam V3 of I-Movix, a system distributed in Spain by Clearcom and that has managed to leave with its mouth open to the forofos of the Slow-Motion. Given the appearance of this system if worked with shutter speed that was not quick enough in moving image, the result used to be distorted. I-Movix has come to demonstrate that we can have high definition of the camera overcome with the perception of a surprising naturalness.

The I-Movix sprintcam V3 is actually a set of solutions (Chamber, CCU and OCP) that offers an HD-SDI output in real time, with a 12-bit CMOS sensor of 2048 pixels allowing a variable speed of between 500 and 1,000 images per second, recreating sequences between 20 and 40 times slower than reality.
The Sprintcam V3 HD is the only integrated camera offered by Native HD in Ultra-Slow Motion for Broadcast applications, being able to instantly offer repetitions of any moment. This possibility makes it ideal for high spectacular sports broadcasts or for the production of large format documentaries.

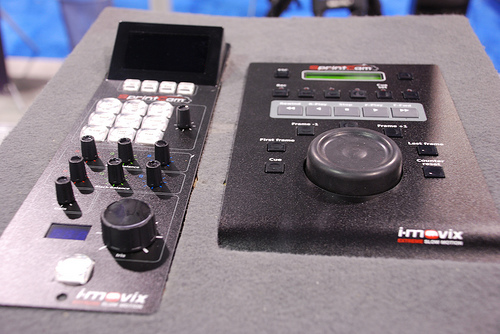

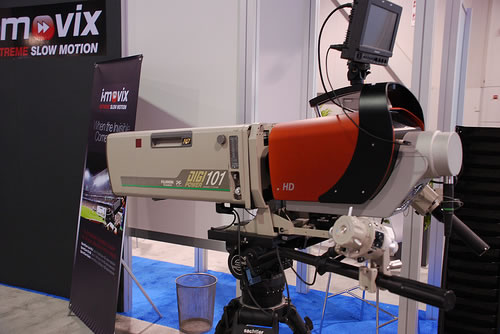

The system is actually composed of the high -speed HD camera Photron SA-2 that admits objectives B4, PL, C and F and have a 2K x 2K CMOS sensor. This camera is connected by fiber optics under SMPTE standard and lemo connectors (with distances of up to one thousand meters) to a CCU (with HD-SDI output and occupy 3RU) and an OCP from which the balance of blacks and blacks, gain control, gamma and knee control, color adjustment, iris control, and from there in turn to a slow-motion replacement system is controlled connected to an EVS LSM server or any other recorder.

The EVS is the system that allows you to launch with HD-SDI output the repetition of the images at any time at variable speed. Sprintcam V3 HD can be used together with the EVS LSM server, individually or sending signals to an SDI recorder.

One of the advantages of the system is its easy operation without having a specialized operator or an engineer every time you want to use in a broadcast.

I-Movix also has another even more surprising model, the Sprintcam Live V2.1, capable of capturing 500 to 10,000 paintings per second, thus allowing to see the reality that surrounds us up to 400 times slower than we are used to.

I-Movix SprintCam v3

In this video we can see the impressive quality of the images at 1920 × 1080 to 1,000 fps, although it is available for your discharge An original Master version Proreshq.

[youtube]http://www.youtube.com/watch?v=5-NN9K9oTYo[/youtube]

Here we can see other examples of productions for advertising with speed that in some cases, shot with the Sprintcam Live V2.1, reach 5,000 fps. These are images directly from RAW files without any postproduction effect…. spectacular!
