New akg WMS420 wireless system, affordable and easy to handle

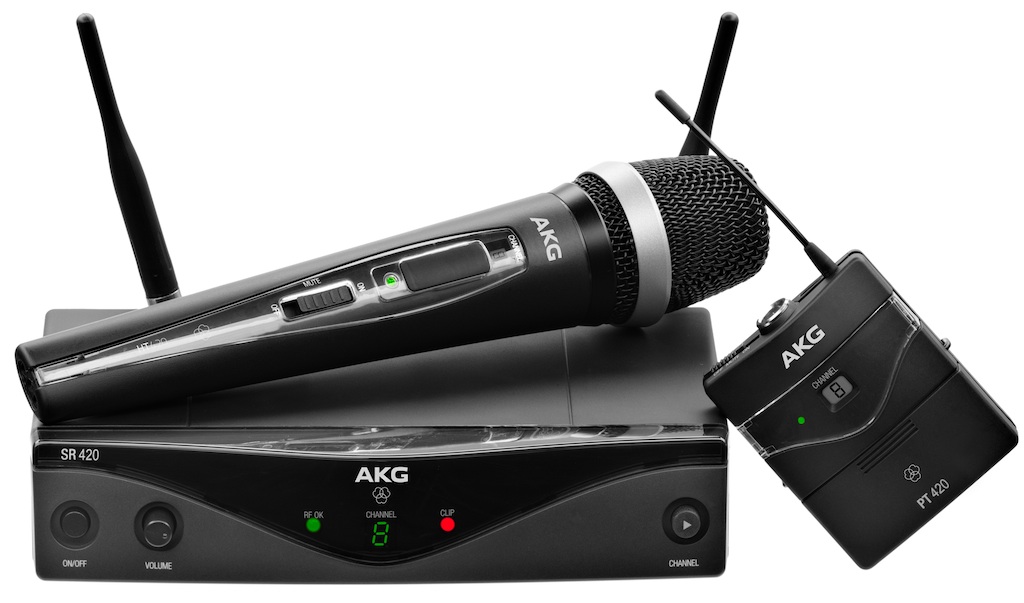

The full family consists of the SR 420 stationary receiver with removable external antennas, the HT 420 hand transmitter and the PT 420 petaca transmitter.

AKG It has just launched its new WMS420 series that inherits AKG's upper technology and sound in a highly flexible system, easy to use and that has the best performance in its price range.

The WMS 420 series is adequate as a solution of several channels for live music, and is also perfect as a solution for wireless microphony in study or events. The full family consists of the SR 420 stationary receiver with removable external antennas, the HT 420 hand transmitter and the PT 420 petaca transmitter.

Professional characteristics

The HT 420 hand transmitter incorporates the D5 capsule, high -end, which is found in AKG higher models. Its supercardioide polar pattern ensures maximum gain before feedback, as well as a small manipulation noise.

Both transmitters (hand and petaca) incorporate a battery recharge system by contacts, which avoids having to take out the batteries for load. The WMS420 system is the only market in the market that incorporates this professional feature, among all the systems of the same price range. Its great ease of configuration and use are also a point to take into account, especially for companies that offer sound services, but do not have tours and concerts as the main business.

On the other hand, thanks to its low maintenance cost, the WMS 420 system is very attractive to facilities and for event companies.

The work area has been extended thanks to the use of optimized antennas for its frequency range. The removable antennas of the receiver allow the use of professional accessories, such as splitters and remote directional antennas for systems with multiple channels.

At the range

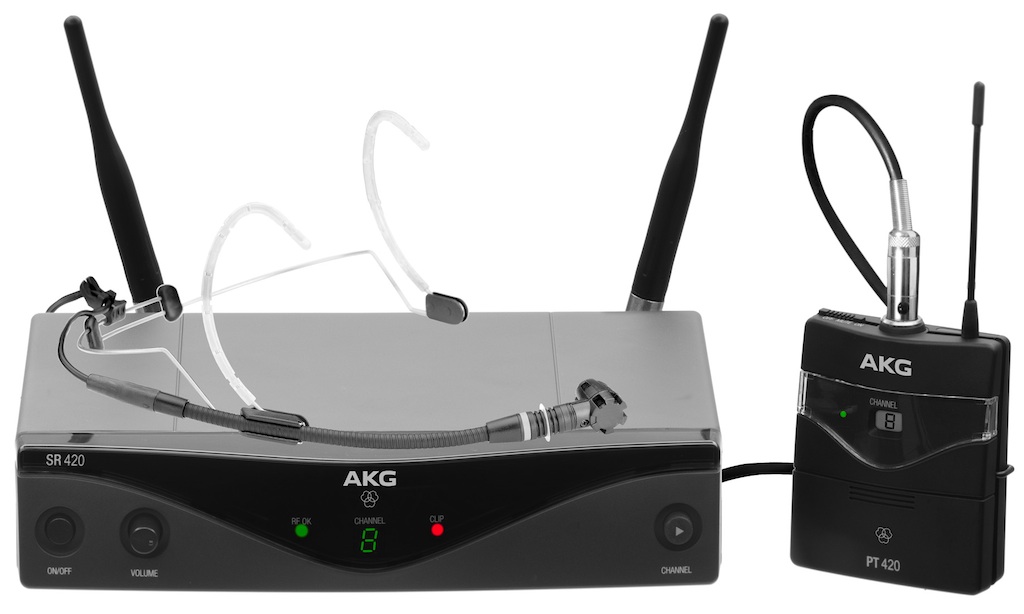

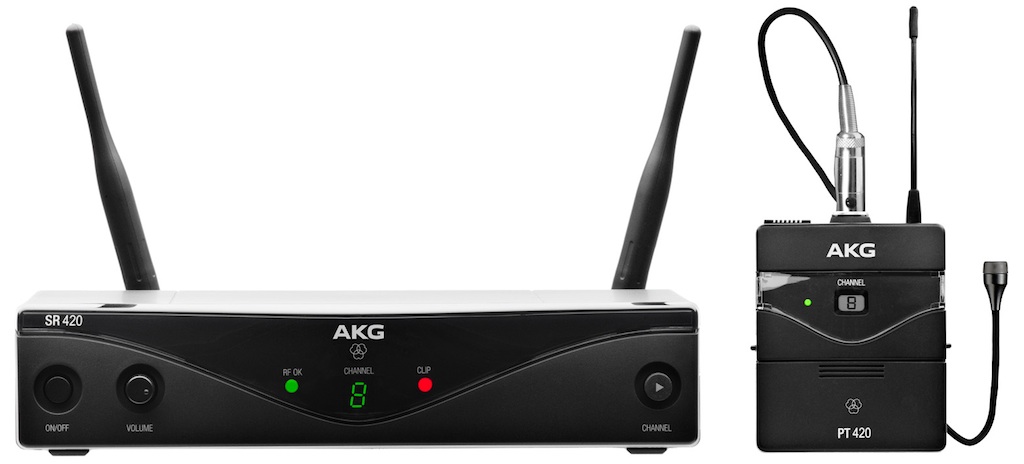

WMS 420 series products can be acquired in a set of receiver and control transmitter with Capsule D5, or in three different sets with a petaca transmitter: the diadema set includes the high performance condenser microphone C555L, which is ideal for applications that require freeing hands; The presenter set includes the professional microphone of the C417L laapa; The guitar set includes an instrument cable. The new AKG WMS420 wireless systems are already available in Spain.

Main features

Frequency bands: A: 530,025 - 559,000 MHz; U1: 606,100 - 613,900 MHz; U2: 614,100 - 629,900 MHz; B1: 748,100 - 751,900 MHz; B2: 774,100 - 777,900 MHz; M: 826,300 - 831,000 MHz; D: 863,100 - 864,900 MHz.

Diversity System: For antenna switching

RF output: 10, 20 or 50 MW (depending on the frequency band)

Audio frequency response: 40 - 20,000 Hz

Tuning range: up to 30 MHz (depending on the frequency band)

Maximum number of channels: up to 8 compatible channels in the same frequency band
