Lawo mc36 48 faders

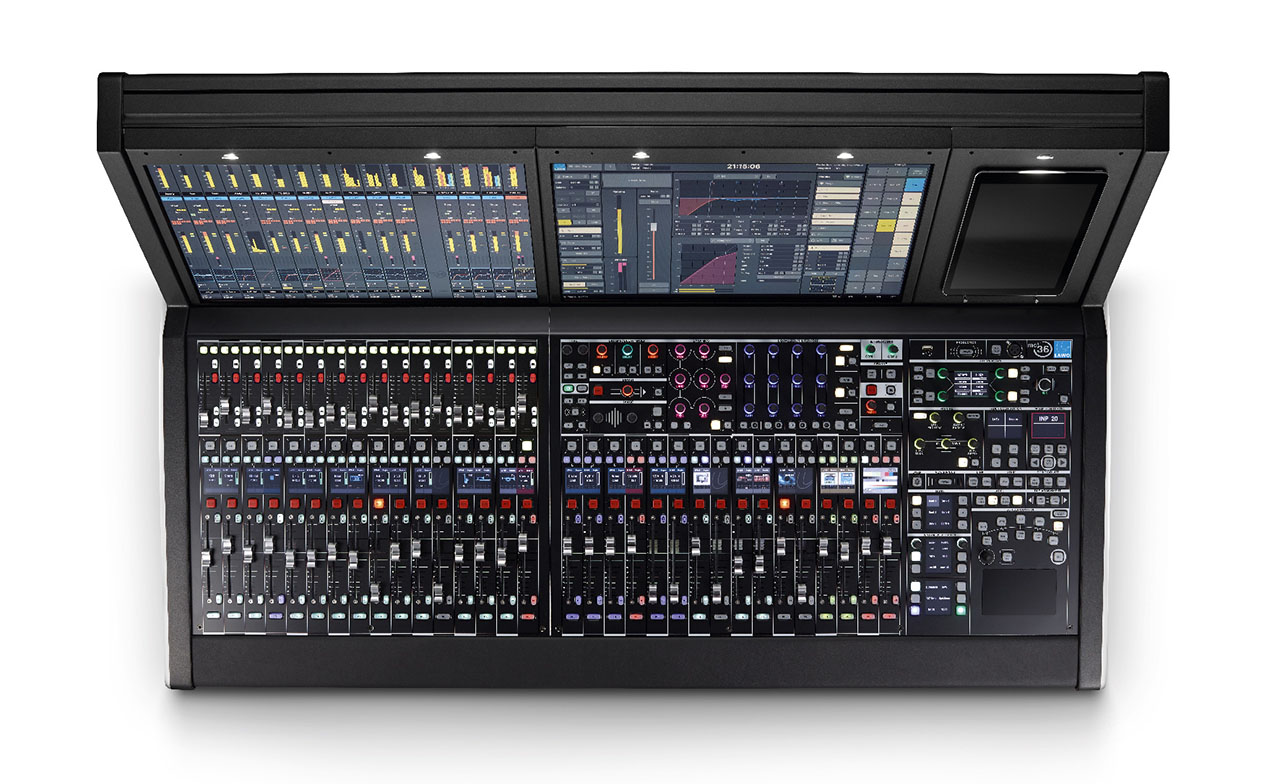

Mc²36 audio production console of Lawo features new dual-fader operating bay that allows 48 faders in the same space as a 32-fader board.

With DSP more than doubled from its predecessor, the new mc²36 with built-in A__UHD Core functionality offers 256 processing channels, available at both 48 and 96 kHz, and natively supports ST2110, AES67, RAVENNA, and Ember+. It provides an I/O capacity of 864 channels, with local connections that include 3 redundant IP network interfaces, 16 Lawo-grade mic/line inputs, 16 line outputs, 8 AES3 inputs and outputs, 8 GPIO connections, and an SFP MADI port.

Operating and visualizing features include Button-Glow and touch-sensitive rotary controls, color TFT fader-strip displays, LiveView video thumbnails, and 21.5” full HD touchscreen controls. Its built-in full loudness control is compliant with the ITU 1770 (EBU/R128 or ATSC/A85) standard, featuring peak and loudness metering which can measure individual channels as well as summing busses.

Third-party solutions

The new mc²36 offers integration of third-party solutions like recording systems, effects engines, and other systems running on external PCs, into its user interface. Applications display right in the console’s screen, while console keyboard, touchpad and touchscreen provide control.

Last but not least: mc²36 offers integration of Waves SuperRack SoundGrid, providing operators with access to Waves’ extensive plug-in selection of real-time signal processing alongside the console’s internal processing engine — no additional screens or control devices required.

IP Settings

The new mc²36 is based on Lawo’s A__UHD technology and includes Lawo’s new IP Easy functionality that makes IP setup “as simple as analog”. IP Easy, based on Lawo’s Home management platform for IP-based media infrastructures, automatically detects new devices and makes them available. IP Easy also manages IP addresses, multicast ranges, and VLANs, and includes security features like access control and quarantining of unknown devices to protect your network.

Home is natively built on a cloud-ready microservices architecture, enabling users to connect, manage and secure networked production setups from the ground up. Furthermore, it provides centralized access and control for all Lawo gear within a setup. HOME features include automated discovery and registration of devices, connection management, flow control, software & firmware management, scalability and security.
