The UHK-X600 leads the Ikegami camera catalog at IBC 2023

The European debut of the UHK-X600 camera in IBC 2023 demonstrates the impulse of Ikegami for continuing to offer a portfolio of versatile capture solutions adapted to the different needs of the broadcast industry.

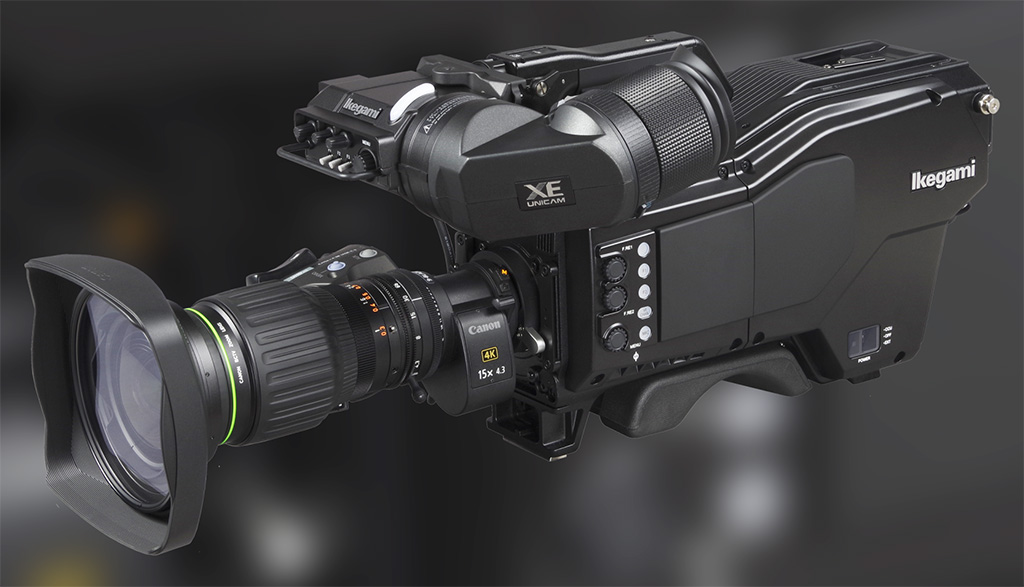

La Ikegami UHK-X600 is the latest expansion of the Unicam XE product line. Designed for use in studio applications, virtual production environments or for mobile units, it incorporates three 2/3-inch UHD CMOS sensors with oversampling and global shutter, offers a resolution of 1,000 TVL and minimal aliasing, and has a high sensitivity of F11 a 2.000 lx (in 50p mode).

Standard features of the UHK-X600 include full compatibility with HDR (Hybrid Log Gamma) with the ability to select between color spaces BT.2020 and BT.709, as well as a wide selection of HD frame rates as standard: 1920x1080@50p, 59.94p, 29.97p, 25p, 24p, 23.98p, 50i, 59.94i and 1280x720@50p, 59.94p. Those interested in the universe UHD They can purchase an optional permanent license key to add 3840x2160@50P, 59.96p operation when required, as well as purchase another license to add a high frame rate option to enable 2x, 3x and 4x speeds in HD.

The UHK-X600 will be accompanied by other equipment such as the UHK-X700, flagship camera of the UNICAM XE family that offers UHD frame rate operation as standard; the UHK-X750, full studio camera version of the UHK-X700, with a lower center of gravity and easier staging compared to a portable telephoto camera; the head HDK-99, which incorporates three 2/3-inch 2.6 megapixel CMOS sensors, each capable of capturing images with Full HD resolution of 1920 x 1080 with a dynamic range greater than 600% and a sensitivity of F11 (1080i), combined with a high signal-to-noise ratio and modulation depth; he HDK-73, designed for standard dynamic range and high dynamic range broadcast production; the UHL-43, a compact box-type UHD camera designed for robotic studios, live events or POV capture, and its sister UHL-43HD, with limited HD frequency as standard, although it has the possibility of acquiring a license to jump to UHD.

All these solutions are accompanied by a wide range of accessories, such as studio/EFP adapters, camera control units, master control panels, base stations, IP interfaces and viewers.
