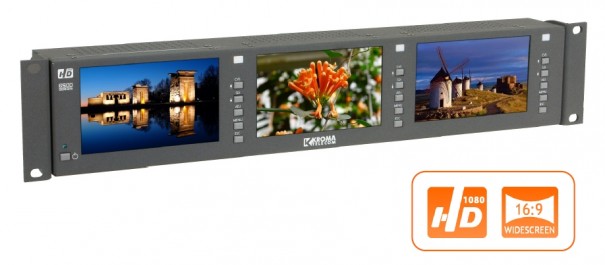

LM6505: three monitors in one from Kroma

The new 5” three-screen monitor is designed for work environments where space and consumption are the most important factors.

With three native 16:9 screens (with optional 4:3 mode and a resolution of 800x480l) that can be controlled independently, the new LM6505 from Kroma Telecom brings together a solution designed for mobile units and sports productions in just 2RU in height. With three high-quality TFT screens, each panel is characterized by a wide viewing angle of 170º H/V (with active area of ​​108×64.8 mm) and some of the best features of this size on the market, with very good brightness and contrast, and excellent resolution. With this new monitor, the user has at their disposal two composite inputs per screen (PAL/NTSC/SECAM) for analog environments, as well as two SD/HD-SDI inputs per screen for digital environments. The monitor, which auto detects the wide variety of signal formats available and incorporates a tri-color tally, displays the signal status in three colors (red, orange and green). It has an MTTF of 50,000 hours, with a brightness of 300 cd/m2 and a contrast of 600:1 with a response time of 25 ms.

Regarding its update, it should be noted that it can be done using software via USB in a simple and quick way. Its dimensions: 84mm (2U) x 440mm x 70mm, its weight, 2 kg and its average consumption at 230VAC, 25w.
