Avid Venue S3L: 64-channel direct recording to Pro Tools

Up to 64 mic preamps, HDX processing, 64 tracks recording to Pro Tools (and other Asio DAWs). S3 control surface capable of controlling Pro Tools and other DAWs thanks to the EUCON protocol… are some of the features of the new compact mixing system.

Avid is once again at the forefront with the introduction of the compact Venue S3L live mixing system. This system is presented as a new benchmark in its segment, with unique features such as direct recording of 64 channels to Pro Tools (or other Asio DAWs) using a single Ethernet cable, as well as the possibility of controlling Pro Tools or any EUCON compatible DAW. HDX processing ensures outstanding sound quality in this scalable system capable of hosting up to 64 remote microphone preamps.

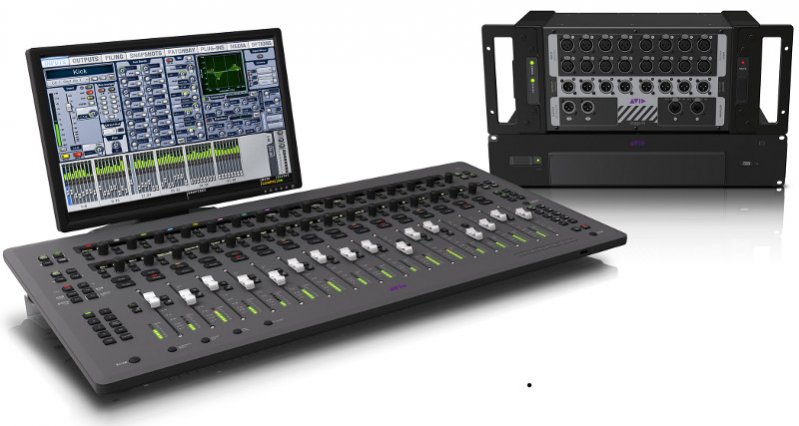

The Venue S3L system is based on three main elements: processing unit, control surface and remote input/output rack.

Thus, at the heart of the system is the E3 processing unit, which works with the renowned Venue software as the control center of the entire system. The E3 unit features HDX processing, compatible with AAX DSP plug-ins, and is equipped with three Gigabit Ethernet AVB ports, with EtherCON security connectors. It also has a specific Ethernet port for remote control using a laptop or tablet.

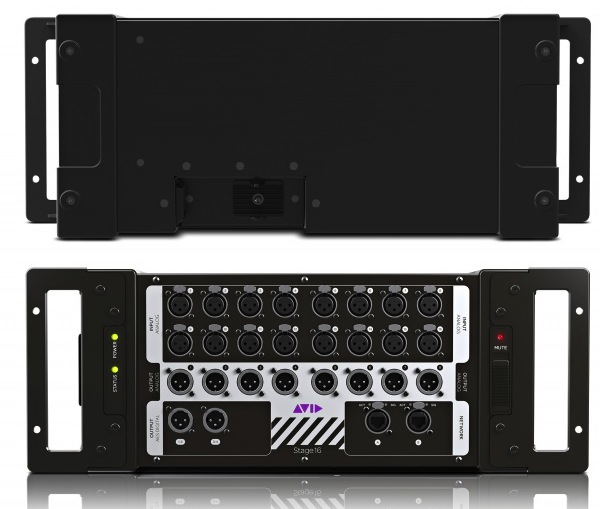

The Stage 16 remote input/output rack has 16 analog inputs in XLR format with remote control of the microphone preamp. It also has eight line outputs in XLR format and four AES3 digital output channels. Its very resistant chassis has two robust side handles that facilitate its transportation, or allow it to be placed in a rack. It is possible to configure systems with 1, 2, 3 and up to 4 remote racks (S3L 16, S3L 32, S3L 48 and S3L 64 systems).

Much more than a controller

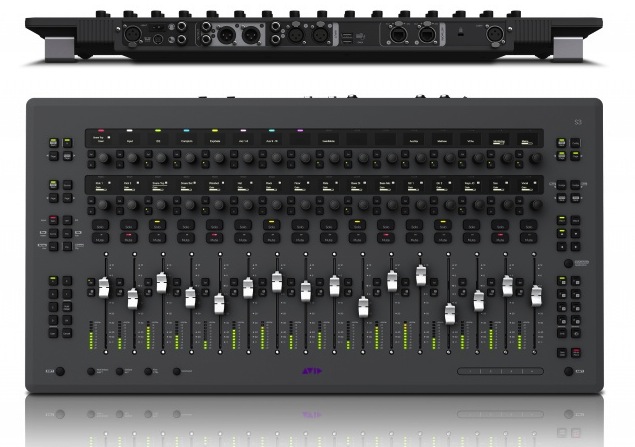

Finally, the S3 control surface has 16 faders, with six layers that can be grouped into banks. It also has 32 touch encoders and high-resolution OLED screens, clearly visible even in broad daylight. And something that makes the Surface S3 unique is the fact that it is not just the controller for this sophisticated live mixing system. It is also a controller for Pro Tools and other DAWs that support the EUCON protocol. This represents a true milestone in flexibility and amortization of the invested capital. Another outstanding point is the weight of the Surface S3, which is just 6.2 kilograms.

The new Venue S3L system works with Venue 4 software, which adds important improvements such as: two-track recording and playback directly to a standard USB memory. This feature is controllable from the new “Media” page, which offers transport controls (play, record, stop, etc.) for said media. Another highly relevant feature of the Venue 4 software is the improved “Virtual Soundcheck”; Input tracks from Pro Tools can now be chosen selectively. This way, part of the band can try out real musicians on stage, while the remaining tracks can be played from Pro Tools.
