Atresmedia expands its telecommunications infrastructure of its production studios with Albalá systems

A new high definition production control, with a wide deployment of fiber optics, incorporates the infrastructure equipment of the Cross-Connect line, designed and manufactured by Albalá Ingenieros.

Atresmedia has once again trusted Albalá Engineers for the expansion of the telecommunications infrastructure of its production studios and contingency systems.

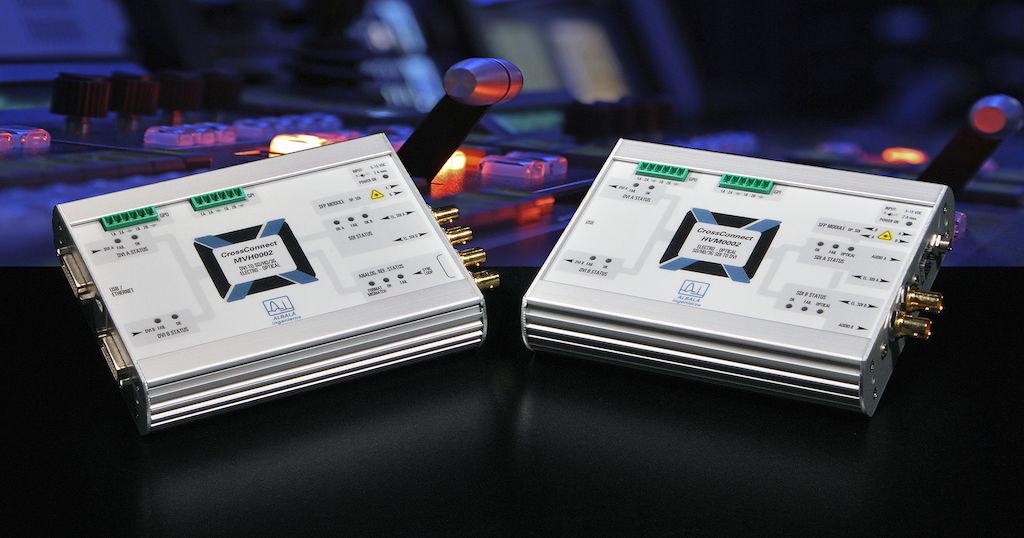

In addition to a significant number of racks equipped with signal distribution, synchronization, conversion and optical links modules, a new HD production control, with a wide deployment of fiber optics, incorporates the infrastructure equipment of the Cross-Connect line, designed and manufactured by Albalá Ingenieros, which includes the HVM0002C01 and MVH0002C01 models for the conversion of 3G/HD/SD-SDI digital video signals to DVI and vice versa.

The HVM0002C01 module is a dual SDI to DVI digital video signal converter. The equipment has two BNC connectors that correspond to two electrical SDI interfaces that can be configured as inputs or outputs independently and a receptacle to house an optional SFP module that can provide two additional optical SDI interfaces that can be either inputs or outputs depending on the type of module that is installed.

The MVH0002C01 module is a dual DVI to SDI digital video signal converter. Each section of the equipment has a DVI input connector, through which it can receive digital audio and video. The video is stored in a frame memory to be transmitted through the SDI outputs synchronized with the selected reference signal. The audio is passed through a sample rate converter so that it can be framed into the output video.
