Sennheiser's EW-DX microphone line is completed with a new four-channel Dante receiver

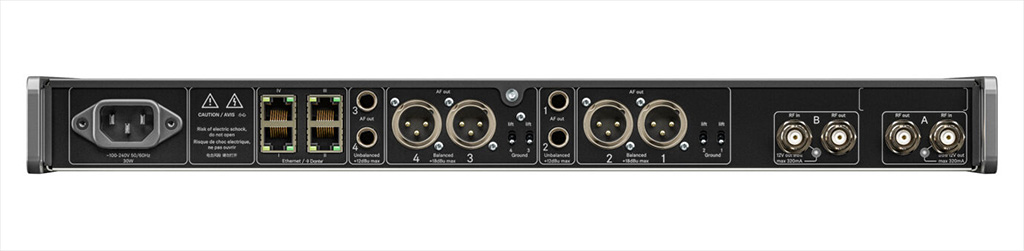

The EW-DX EM 4 receiver Dante completes the Evolution Wireless Digital EW-DX microphone environment Sennheiser making AoIP integrations even easier while integrating balanced XLR-3 outputs.

The new EW-DX EM 4 Dante stands out for its ease of use, which begins with the integration of a auto switching power supply which adapts to the local power supply. They can be daisy chained up to four EW-DX EM 4 (up to 16 channels) directly without the need for additional devices, as the receiver is equipped with an integrated antenna splitter with antenna feed and signal loop.

To network based systems, the receiver's four network ports allow flexible configuration modes, and the ports are configured accordingly: Control and Dante combined primary (single cable mode), Control and primary Dante separated (split mode), and Control, Primary Dante and Secondary Dante separated (redundancy mode). Ethernet connectivity is IPv4.

Once the receivers have been configured, you can start a fast frequency scan through an EW-DX EM 4 Dante. The receiver will automatically deploy free frequencies to all connected receivers, including receivers EW-DX EM 2 and EW-DX EM 2 Dante. Custom frequency lists can also be loaded into the receiver.

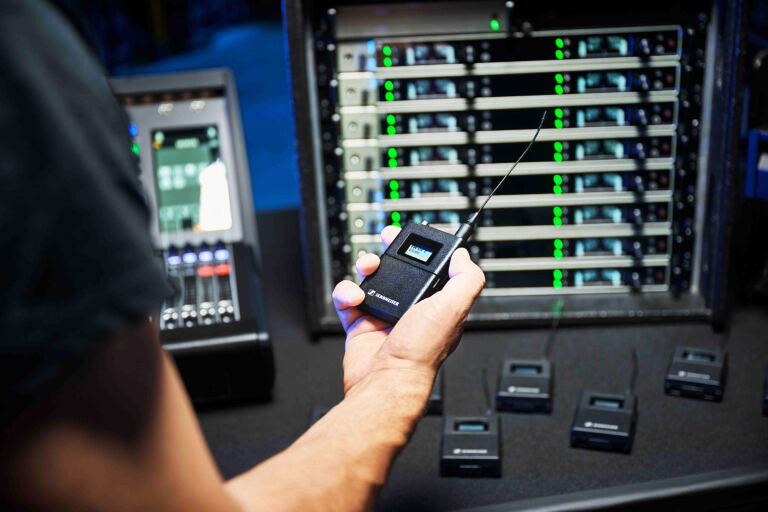

The transmitters are conveniently synchronized via BLE from a distance of up to 20 metros- The operator does not have to crouch in front of the rack to link receivers and transmitters. The parameters to be synchronized can be determined through the receiver menu. The EW-DX receiver also gives you the option to perform a walk test to verify signal integrity on stage or performance area.

EW-DX EM 4 Dante: opening the doors to remote productions

For those occasions when you want to enjoy remote control and monitoring, the Sennheiser EW-DX EM 4 Dante offers compatibility with software such as Systems Manager o Sennheiser Control Cockpit. Third party media control systems can also be adapted via the SSC protocol Sennheiser Sound Control while, for small setups with a maximum of 16 channels, the system can also be managed via the app Smart Assist App.

Still, for direct control, the EW-DX EM 4 Dante user interface offers easy access to all functions through the navigation wheel, control buttons and an OLED screen. In addition to displaying RF levels, a link quality indicator provides information on RF status, and a switchable headphone output on the front panel allows monitoring of the audio signal.

In addition to the EW-DX EM 4 Dante, the EW-DX line includes two 19” and a half two-channel receivers with and without Dante outputs, handheld and pocket transmitters with multiple microphone options, a wireless table stand, remote and wall-mount antennas, as well as a variety of table- and rack-mount charging solutions.
