Teradek Bolt Pro: The first wireless video capture card

Bolt Pro 300, 600 and 2000 are now presented with HDMI and 3G-SDI input on TX and send the signal to the new receptors designed without fans, including one with the record engine, which convert the Bolt Pro being the first card in the world that captures video without cable.

Teradek He has announced in Las Vegas three new video transmission systems for its popular Bolt products line. Bolt Pro 300, 600 and 2000 are now presented with HDMI and 3G-SDI input in TX and send the signal to the new receptors designed without fans, including one with the record engine, which convert the Bolt Pro into the first card in the world of video capture without cable.

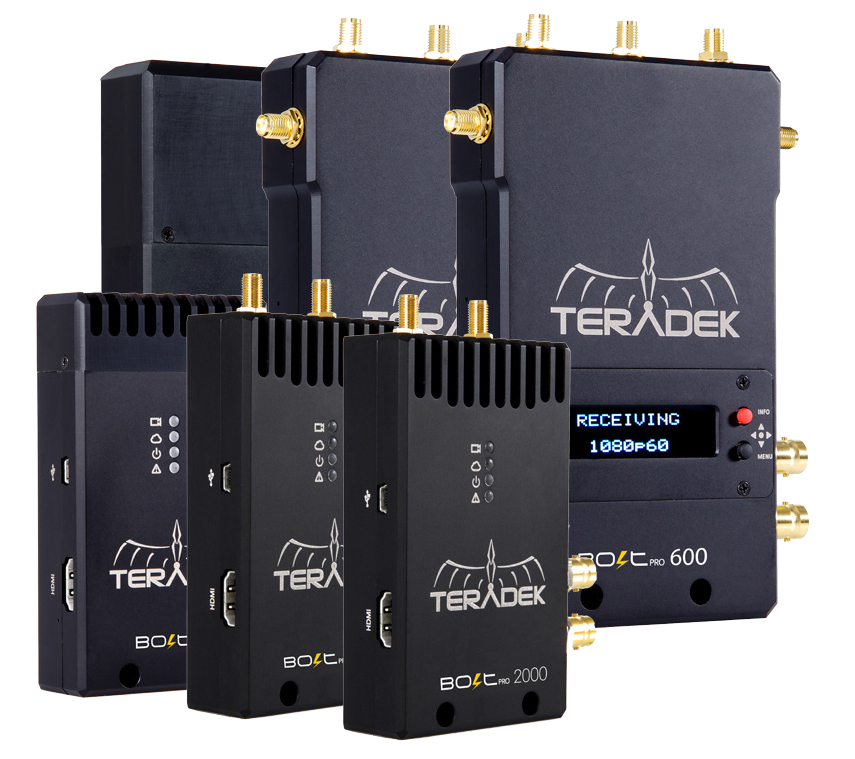

The short -range Bolt Pro 300, the medium -range Bolt Pro 600 and the long -range Bolt Pro 2000 transmit 10 BIT RGB of uncompressing video in less than 1ms of latency. Each system is multidifusion, capable of hosting up to 4 receptors, so that the transmission can be carried out to multiple recipients at once.

La novedad de la línea es el nuevo receptor con motor GRAB para los modelos Bolt Pro 600 y 2000. El dispositivo ofrece salidas tanto 3G-SDI como USB 3.0, de forma que los usuarios pueden llevar a cabo la ingesta de una transmisión de video sin comprimir a 10bit RGB desde el dispositivo Bolt directamente a un puesto de Técnico de Imagen Digital (DIT Cart), un ordenador NLE (Non-Linear Editing) o un mezclador de producción en vivo, sin necesidad de acumular retrasos o realizar conversiones adicionales. Dado que el motor GRAB soporta el omnipresente Video Class USB 3.0, el receptor Bolt Pro con motor GRAB se muestra como una fuente de video integrada al software y podrá trabajar en cualquier aplicación Windows o Mac que soporte video. La unidad viene con el mismo chasis sin ventilador que el modelo estándar del receptor 600 & 2000 e incluye un LCD integrado para chequear el estado de conexión y emparejar otros receptores Bolt desde cualquier lugar.

Cube Pro H.264

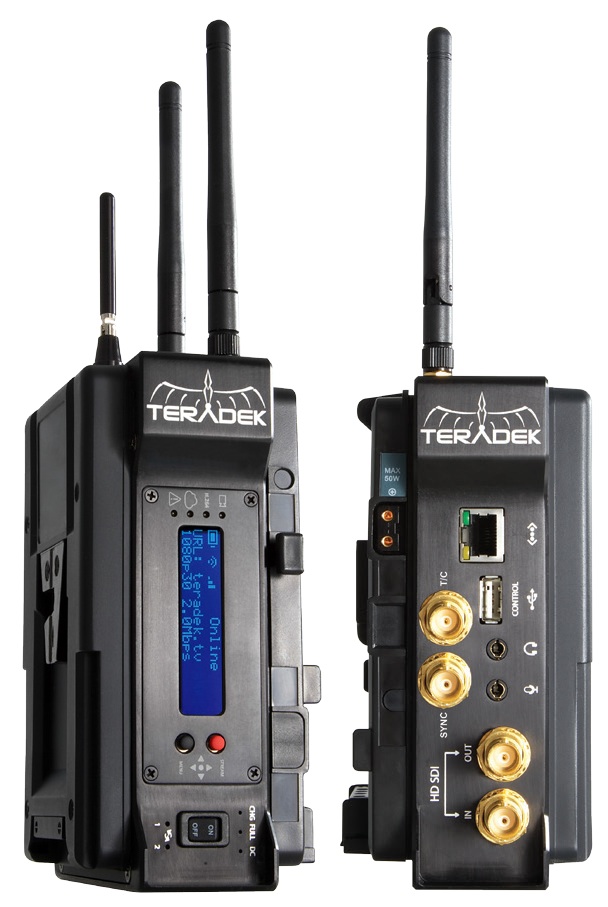

Teradek also presents in NAB 2014 EK New Cube Pro Cube Pro is a coder with rear camera H.264 with a Buddy Timecode system: with integrated One Control Keyboard, for a highly adjusted cable time control and Genlock above 900MHz band.

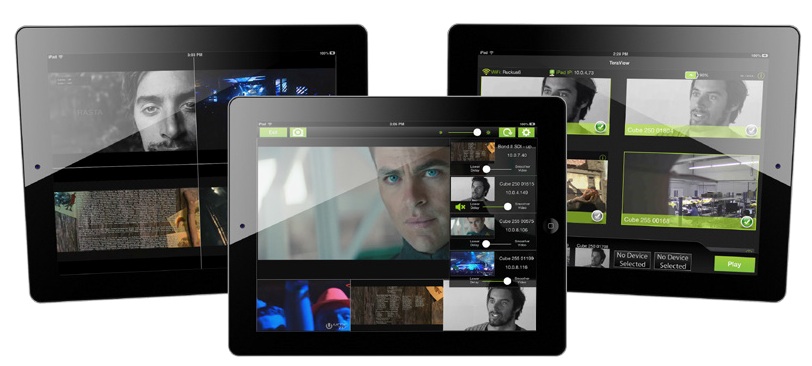

Cube Pro offers a significant number of improvements on current Cube models, as a result of its two new co-processes, which allow coding with a higher bit ratio in transmissions, as well as a lower latency streaming and HD monitoring in real time both on devices 10 iOS and Android. Cube Pro can also use the latest Teradek mobile software solutions, including Teravieww, which allows users to monitor and record up to 4 video transmissions on a single iPad simultaneously.

The inclusion of the Buddy Timecode System: The ONE control keyboard offers Cube Pro TC In, TC OUT and Genlock out users in all cameras connected to the device. Integration also causes the Cube Pro to automatically compatible with the entire Buddy Timecode: the system, Denecke TS-TCB Intellisslate and all the multiple third-party support applications (Movieslate, Adobe Prelude Livelogger, Softron Move Recover, and in2core qtakehd). As a result, Teradek users enjoy the solid Multi-Cámara RF synchronization, video flows with very tight time codes incorporated and the possibility of using metadata embedded in the SDI sequence for logging logging intelligent wireless content.

Streaming device for iPad and Android: Serv

Teradek Serv is a pioneering monitor system based on an HD-SDI desktop transmitter that will allow customers and production staff to visualize each real-time image on its smartphones and tablets. Serv supports up to 10 connections at the same time and transmits video and audio both HD and SD in perfect synchronization with Dual Wifi band. Since SERV uses Wi -Fi networks, you could easily expand its scope by adding any standard dual band router alsystem.

And what happens to the latency of my phone or tablet? It is not a problem. Serv transmits only with 4 delay frames and is compatible with the application of Teradek Teraview, which allows you to visualize and record up to 4 live broadcasts simultaneously on its iPad or tablet Samsung Galaxy Pro with the same low latency. Serv is also completely free.
