Detailed level correction with Eyeheight

Eyeheight now has numerous solutions on the market for legalization or self-correction of video signals, among which LegalEyesFC, SafeEyesFC and LE-2nM stand out, which ensure that all material is kept under standards before leaving a post-production company or broadcasting it on a network.

Eyeheight's LegalEyesFC video level autocorrector is a plug-in based on its long experience in legalization, adjustment and autocorrection of broadcast signals. The system allows you to correct both composite, RGB and RGB+composite video, with all parameters adjustable by the user.

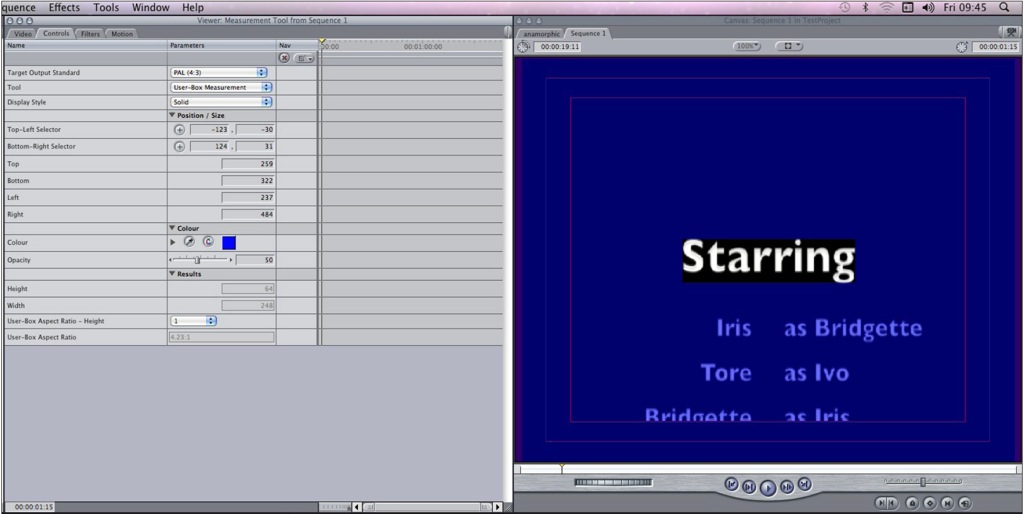

LegalEyesFC supports both PAL and NTSC and through Eyeheightc's proprietary predictive filtering process, the risk of a network rejecting content because it does not conform to the required levels is reduced. Equally useful is the SafeEyesFC image measurement and security area generator module, which provides a wide range of security mark markers for both different aspect ratios and for labeling, especially in spot production.

Presented at IBC 2009, at the last NAB we were also able to see the new LE-2nM corrector in full operation, capable of auto-detecting SDI or HD-SDI signals at 1080i/50/59.94, 720p/50/59.84, 625/50 or 525/59.94. It has six memories preselectable by the user. It includes black level adjustment, luma and chroma gain adjustment... In addition to the LE-2nM, Eyeheight has the LE-2nU on the market with the same capabilities as its 'brother' but with the possibility of 1080p dual link operation, as well as the LE-2ns, for standard definition.
