New Coemar Infinity M Series models

Coemar's Infinity series, recognized in the market for its impeccable operation and the robustness of the moving heads that compose it, takes a new step forward by incorporating three new models called Infinity M.

After the stellar appearance in 2007 of the Infinity Wash XL, the Infinity S models in 2008 and the Infinity Spot XL in 2009, Coemar continues to go strong and expand this powerful series in 2010 with three new models: Infinity Spot M, Infinity Wash M and Infinity ACL M.

All of them use the innovative multilamp system from Philips. This system allows us to select, among the different options that Philips offers us, which lamp we will need inside the device. At this time we can choose between two lamps for the M range: one of 700W, which offers us a very high luminous performance and another of 575W, which offers us lower intensity but a greater number of hours of life.

The fact of being able to select the lamp will allow us to fulfill “Raiders” of 575 and 700 without the need to give further explanations. To accompany this lamp system, the M range is equipped with a digital ballast that optimizes the performance of the lamps mentioned above and that, in addition, offers us the ZAP effect (electronic shutter generated with the lamp) and the Power-Save function that, halving the lamp consumption in the periods in which the dimmer is closed, extends the life of the lamp and reduces the heating of the internal elements.

Thanks to a dedicated processor and several sensors distributed inside each device, the ventilation is automatically adjusted depending on the internal temperature of the projectors.

Like most of the devices in the current Coemar catalogue, the Infinity M are compatible with the incredible DR1+ that will allow us, by inserting the DR1+ in the conventional DMX512 line, to have access from a PC to all the functions of the displays of the devices that are installed or "hung" on the trusses: renumber them, monitor temperatures, see the voltages on the electronic cards and fans of each unit,... All this without having to climb the truss and without moving from the control. In case Coemar updated the software of the new generations of the M series, the DR1+ would also allow us to update the software of the internal Eproms.

Three models

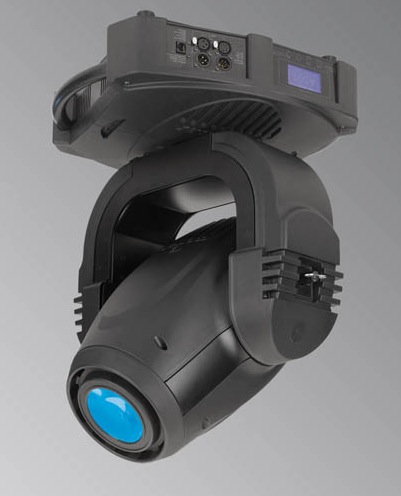

• Infinity Spot M: In this model, the new zoom goes from 9º to 42º in just 400 milliseconds. The dimmer and CMY color system are digital quality. Proof of this is that the dimmer opens from 0%, in a way never seen before. The projected image and the generated effects, of great resolution and impact, have doubled the quality (10MTF) of the standard units.

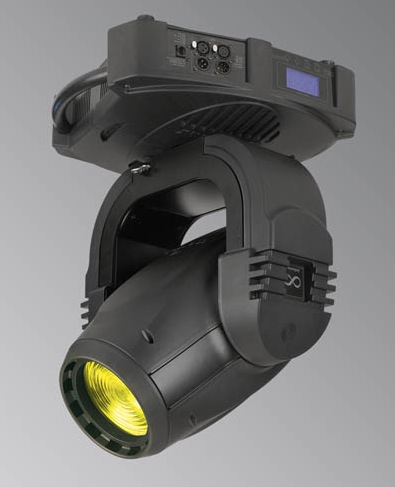

• Infinity Wash M: This model uses the philosophy of the Infinity Wash XL and is equipped with the same effects generator, but in a very compact device. It incorporates two linear zooms, one dedicated to effects and the other to the light beam, which goes from 6º to 42º in 1.3 seconds. It also includes the ACL effect, thanks to its optical group.

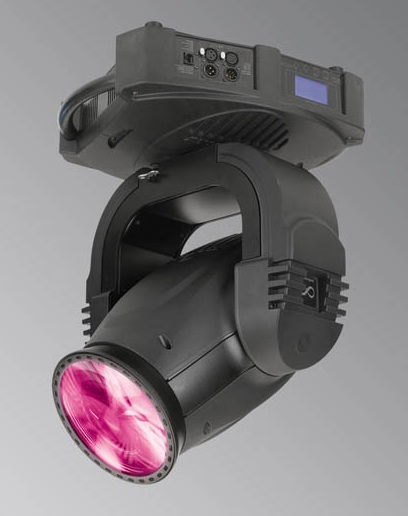

• Infinity ACL M: This unit is extremely powerful, since the Infinity ACL M doubles the power of the S version and also adds the progressive frost effect. Like its predecessor in the S range, the Infinity ACL M generates beams in the air with rotating and CMY color changing gobos. It is noteworthy that to achieve the same light power that the Infitiny ACL M offers us, previously devices 4 times more expensive were necessary.
