New CATV and IPTV meter from Promax

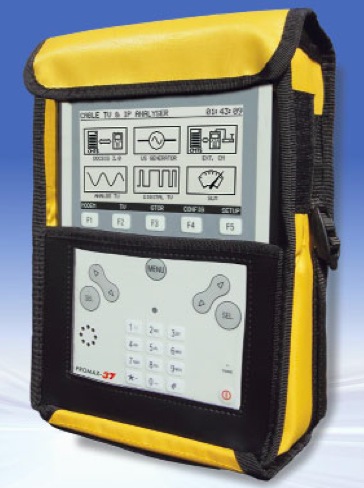

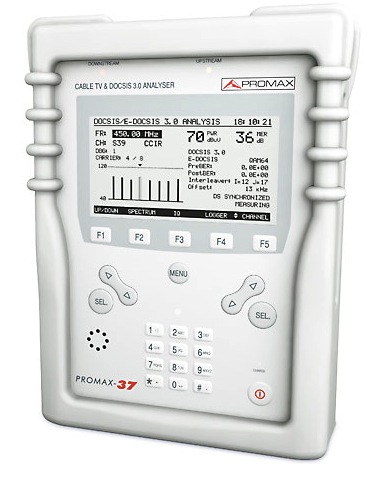

The new Promax-37 is an analyzer for the installation, configuration and maintenance of high-speed interactive video and data services on CATV networks based on the EuroDOCSIS and DOCSIS 3.0 standard.

Promax has just launched the new Promax-37 analyzer for the installation, configuration and maintenance of high-speed interactive video and data services over CATV networks based on the EuroDOCSIS and DOCSIS 3.0 standard.

It also allows the qualification of VoIP and IPTV services. Includes channel bonding technology.

This equipment incorporates measures for the installation, verification and maintenance of FM, MATV, CATV and MMDS signal reception and distribution systems, including the sub-band (return channel).

It also incorporates the power level measurement function across the entire frequency band, very useful for evaluating possible saturation at the input of some broadband demodulators.

Measurements available in the new Promax-37

Downstream link:

• Power measurement by Σ integration
• Channel power measurement
• Quality evaluation: MER, BER, Pre BER and Post BER
• constellation diagram
• Power levels for a frequency band
• Frequency, channel and active channeling
• Modulation type and symbol rate

Upstream link:

• Power measurement by Σ integration
• Checking the power level
• Dimming up to CMTS
• Frequency and bandwidth
• Modulation and symbol rate
• Communications test

Communications Test (Registered Mode):

• IPTV Analyzer (TV over IP)
• VoIP Analyzer (voice over IP)
• IP Report
• Ping test
• Packet Lost Ratio

Others:

• Loop connection with external cable modem (through loop mode)
• Multi-standard annexes A/B/C
• Digital and analog channels
• Broadband power detection
• SCAN, C/N, CSO, CTB
• Transistor detection
• Memorization of maximum and minimum values
• TILT
• Data logger
• Printer connection
• PC connection
