Canon introduces two new 2/3″ 4K field lenses for broadcast environments

The UHD Digisuper 86 (UJ86x9.3B) and the UHD Digisuper 90 (UJ90x9B) provide exceptional optical performance, surpassing 4K resolution in the case of the 86.

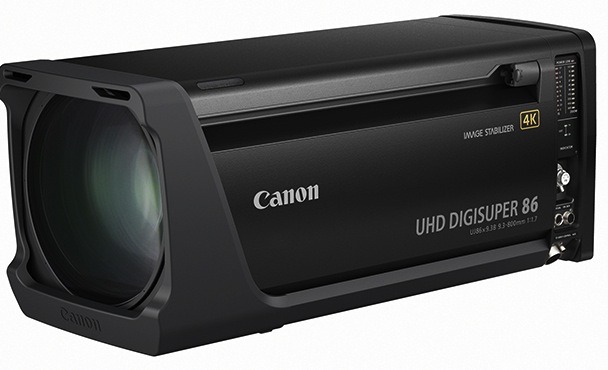

UHD Digisuper 86 (UJ86x9.3B)

Canon presents at IBC two new 2/3" 4K field lenses: the UHD Digisuper 86 (UJ86x9.3B) and the UHD Digisuper 90 (UJ90x9B), which provide exceptional optical performance. In the case of the 86, it even exceeds 4K resolution and offers a very wide focal range, making it ideal for live television broadcasts.

These two new lenses are part of Canon's growing range of 2/3" 4K lenses, joining the recently launched CJ12ex4.3B. Both offer professionals the freedom to record and broadcast live content or sports competitions in spectacular 4K quality.

Both guarantee an image without any aberration from the center to the edges, both in the telefocals and in the angular ones, thanks to their advanced optical construction. Additionally, the increased use of fluorite and UD glass lenses, combined with Canon's professional coatings, enable exceptional ghosting and ghosting control for high contrast images and a wide range of tones.

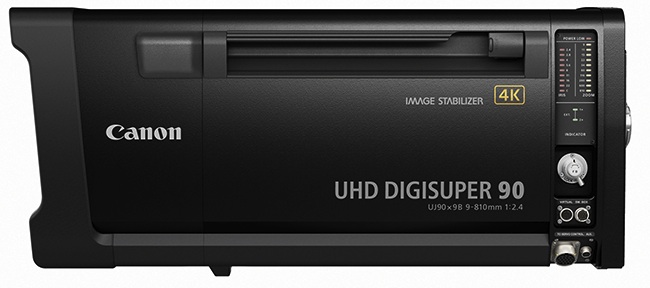

Canon UHD Digisuper 90 (UJ90x9B)

Maximum flexibility

The UHD Digisuper 86 (UJ86x9.3B) has an 86x zoom, with a focal range of 9.3 mm – 800 mm. The UJ90x9B model goes even further, with a 90x zoom, offering a focal range of 9mm – 810mm. To ensure camera operators can work in a wide range of scenarios, both lenses feature a built-in 2x multiplier, which doubles the telefocal length while maintaining their exceptional 4K resolution.

When recording in 4K environments, such as live sports broadcasts, the slightest image movement is not tolerated. Thanks to Canon's Optical Image Stabilization technology, both the UHD Digisuper 86 (UJ86x9.3B) and UHD Digisuper 90 (UJ90x9B) deliver crisp, clear results with maximum precision, even when panning the camera, which is essential for tracking moving subjects in competitions and sporting events, while compensating for wobble. Additionally, camera operators can keep subjects in focus even in the most difficult situations, such as when a long focal length is required, but with a shallow depth of field.

Both lenses are compact and have a size and weight comparable to current 2/3" HD field lenses, allowing easy integration into work environments. Both also incorporate a 20-pin connector for integration with virtual systems and are also compatible with Canon accessories designed for Canon 2/3" HD field lenses.

Access to the IBC 2015 Special in Audiovisual Panorama

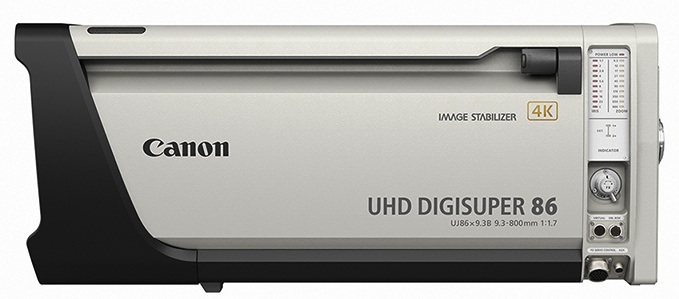

Canon UHD DIGISUPER 86

UHD DIGISUPER 86 (UJ86x9.3B)

  • 4K 2/3” field lens with extraordinary resolution, with 86x zoom and a focal length of 9.3-800 mm (up to 1,600 mm with the built-in 2x multiplier)
  • Aberration-free image from the center to the edges of the image and throughout the zoom range
  • High contrast and high resolution in all wavelength areas of the R, G and B channels in the 4K and beyond 4K frequency bands
  • Similar size and weight to HD field lenses, for seamless integration with existing high-definition television (HDTV) technical setups and recording environments
  • Resolution beyond 4K, even when image stabilization is applied
  • Full compatibility with virtual systems, thanks to the integrated 16-bit encoder
  • Fully compatible with current Canon accessories for HD field lenses

Canon UHD DIGISUPER 90

UHD DIGISUPER 90 (UJ90x9B)

  • 2/3” 4K field lens with 90x zoom and 9-810 mm focal length (up to 1,620 mm with built-in 2x multiplier)
  • 4K resolution with 2/3” 4K cameras, which can be seen from the center to the edges of the image
  • 4K resolution is maintained even when stabilization is activated
  • Similar size and weight to HD field lenses for seamless integration with existing technical setups and high-definition television (HDTV) recording environments
  • Consistent 4K results with precise focus and high zoom ratios
  • It allows you to cover large spaces, such as sports venues, with a single lens, thanks to its wide focal range
  • Full compatibility with virtual systems, thanks to the integrated 16-bit encoder
  • Fully compatible with current Canon accessories for HD field lenses
