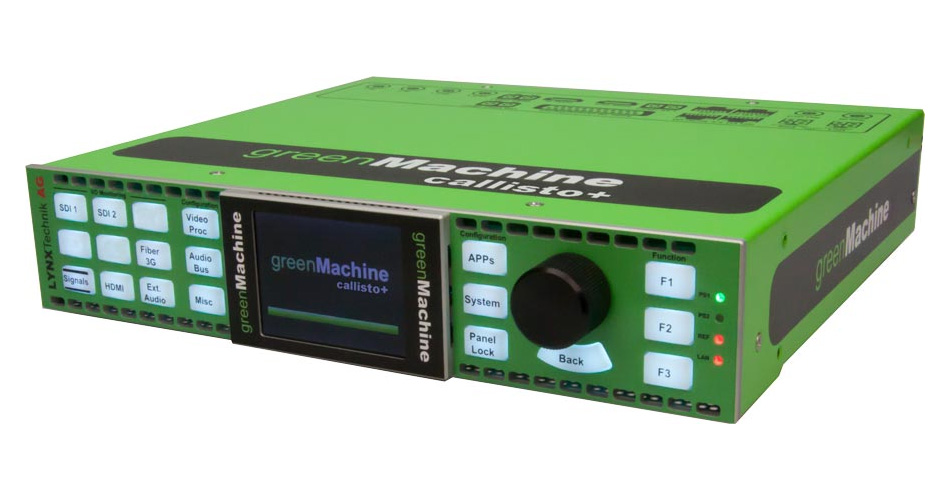

Lynx Technik greenMachine callisto plus

The same features as the greenMachine Titan but for HD productions: this is how callisto+, Lynx Technik’s latest offering, is defined.

The greenMachine callisto+ hardware (model: GM 6825), with 2x3G capability, includes input/output cross-point switching and distribution. Similarly, it can embed and de-embed SDI audio to and from sources and destinations, with support for analog, discrete or embedded AES and MADI audio. It also features a Dolby E® decoder and a metadata management tool.

In terms of connectivity, the callisto+ features HDMI inputs/outputs and fiber interfaces for 3G HD-SDI and Gigabit Ethernet LAN control with optional SFPs. Likewise, the device features an integrated color display and control panel for live image monitoring, audio meters and status indicators. In addition, it can be remotely controlled via the greenGUI software.

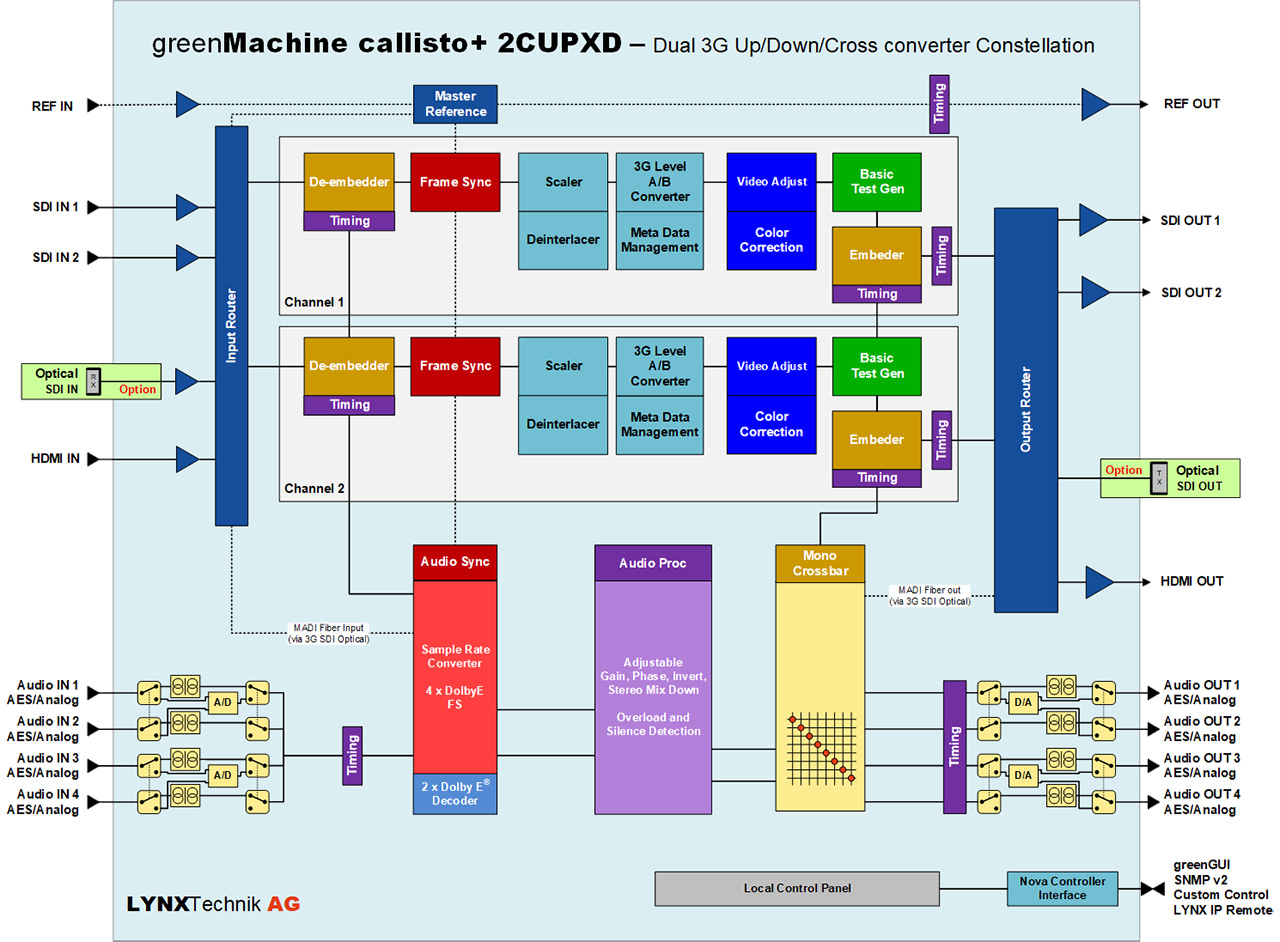

Lynx Technik greenMachine callisto diagrama

GMC-2CUPXD, first available configuration

The first signal processing configuration available for callisto+ is GMC-2CUPXD, a broadcast-quality, two-channel 3G SDI up/down/cross converter that can convert between SD, HD and 3G video formats. Beyond its conversion capabilities, the GMC-2CUPXD offers a frame synchronizer, a 3G scaler and a deinterlacer with motion adaptive filtering. Similarly, it integrates metadata management and color correction for gain, elevation and gamma adjustment, as well as various video adjustment functions.

As with other Lynx Technik greenMachine products, users can purchase licenses for future configurations, without the need to purchase new hardware.
