Kramer VS-48HDxI, new matrix switchers

These matrices allow you to work with both SDI and HD signals at a transfer rate of up to 3 Gbps.

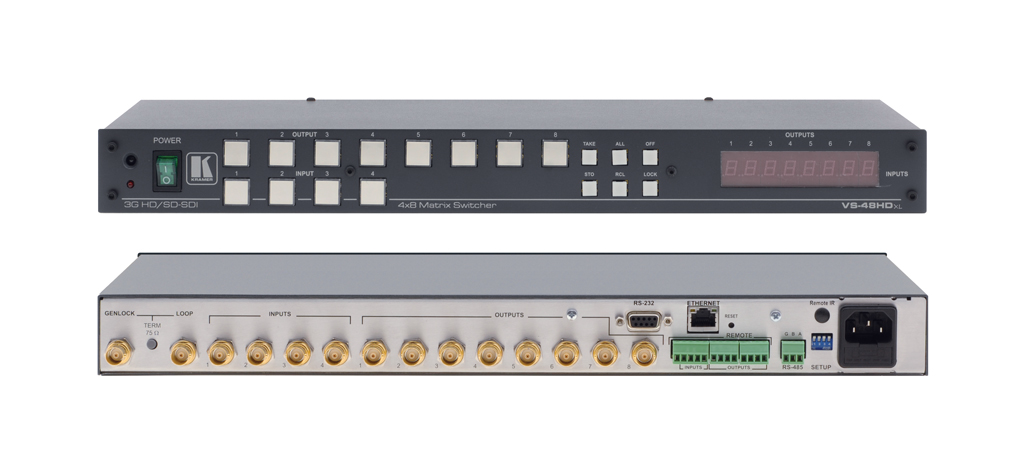

The VS-44HDxl and VS-48HDxl are high-performance matrix switchers for SD-SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M and SMPTE 372M (for dual link)) and HD-SDI 3G (SMPTE 424M) signals. Switching is performed during the vertical interval period in accordance with the SMPTE RP-168 standard, when used with synchronized digital video sources. HDTV compatible support multi-standard operation both SD/HD-SDI, HD-SDI 3G, and dual link HD-SDI.

Thanks to Kramer re-Klocking and qualification technology, they reconstruct the digital signal to travel long distances, while with synchronized switching, it can be synchronized between an external reference or the incoming video.

Each front panel input button automatically illuminates when the unit detects a video signal on that input. Green indicates a standard definition input signal (SDI) and blue indicates a high definition input signal (HD-SDI). Additionally, both systems store multiple switches as saves to be recalled and executed when needed.
