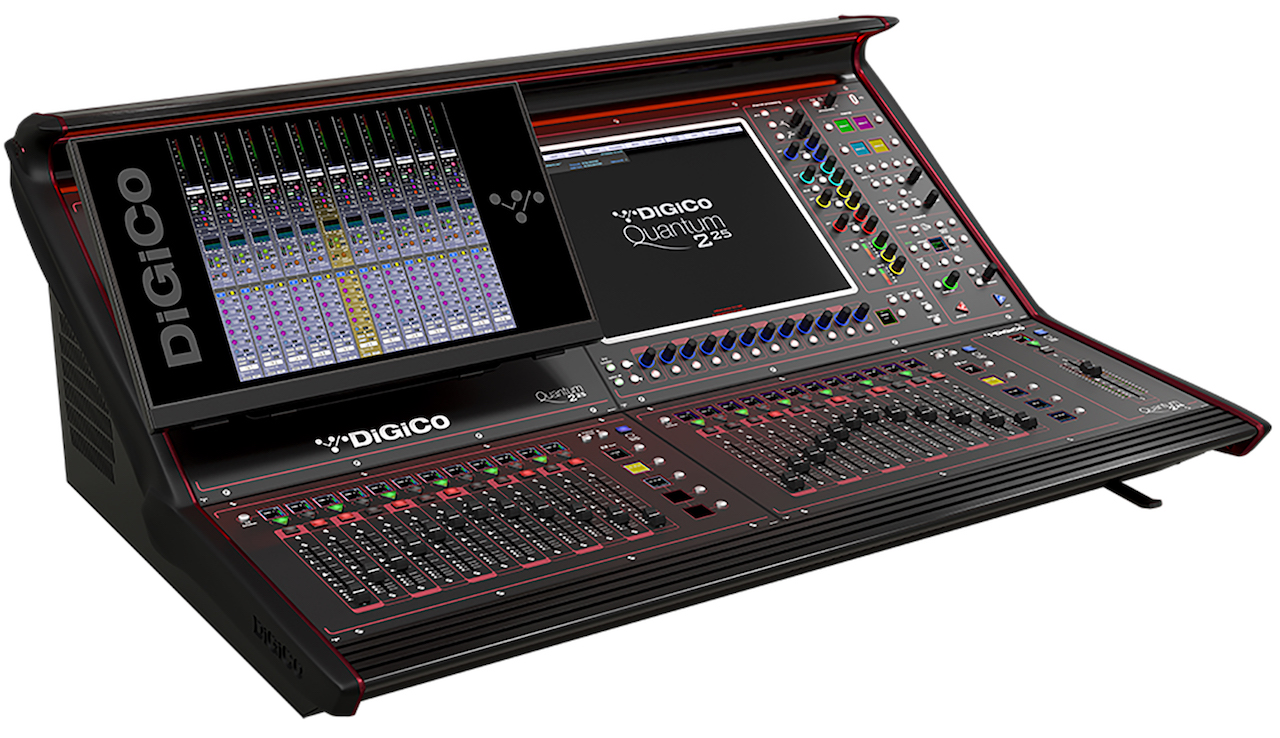

Quantum225: the new Digico console designed for a changing world

The new Quantum225 console includes 72 input channels with 36 buses + master bus and a 12x12 matrix, plus four MADI ports and two DMI ports for greater connectivity, 8 x 8 analog channels and 4 AES for local I/O

Digico has designed the new console Quantum225 as an agile solution versatile capable of adapting to the demands of our changing world. Furthermore, with the new DQ-Rack con Integrated Dante, it becomes a perfect system for AV installations and the demands of an AoIP network environment. Alternatively, with the MQ-Rack you get the MADI connectivity intended for touring infrastructure, allowing the Quantum225 to integrate with existing infrastructure.

The Quantum225 offers 72 input channels with 36 buses + master bus and a 12x12 matrix. It has four MADI ports and two DMI ports for greater connectivity, 8 x 8 analog and 4 AES channels for local I/O, integrated UB MADI, optional optics and Waves SoundGrid, plus a dual power supply.

The Quantum225 also incorporates features already known from the existing Quantum range, such as canales Mustard Processing, Spice Rack, Nodal Processing and True Solo plugin-style native FPGA processing options.

It has a TFT multi-touch screen 17-inch, in full color and with natural light, with the Quantum Dark application, already seen on the Quantum338, combined with 41 mini TFTs located throughout the surface to provide unparalleled response and interaction with the user.

A versatile console

What's unique to Quantum225 is a custom-designed, multi-purpose mounting bracket that attaches quickly and easily to the left panel of the console. This stand can accommodate an additional channel or overview screen, a KLANG:k controller, and can be expanded to accommodate a laptop or script, which is especially useful for theatrical applications. The stand can be installed at two angles with quick release to suit any preference or application.

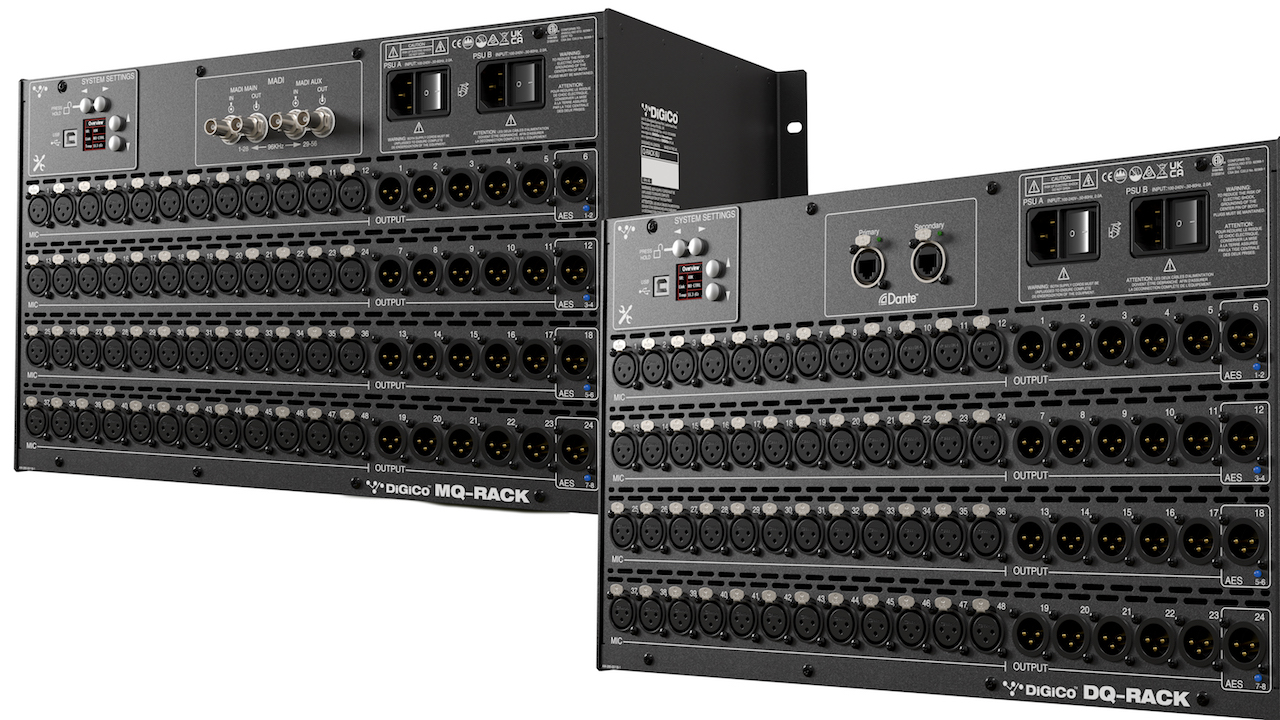

The new ones 6U DQ and MQ compact racks They have been designed from the ground up specifically for the demands of modern applications. They have 48 mic/line inputs, up to 24 analog outputs or up to 8 AES outputs.

And smart audio design allows the user to reconfigure 4 of the analog line outputs to be analog outputs or dual AES outputs. This I/O flexibility and other configuration changes are managed from the racks' own TFT configuration screen. Standard features include a dual power supply and 48k or 96k operation.
